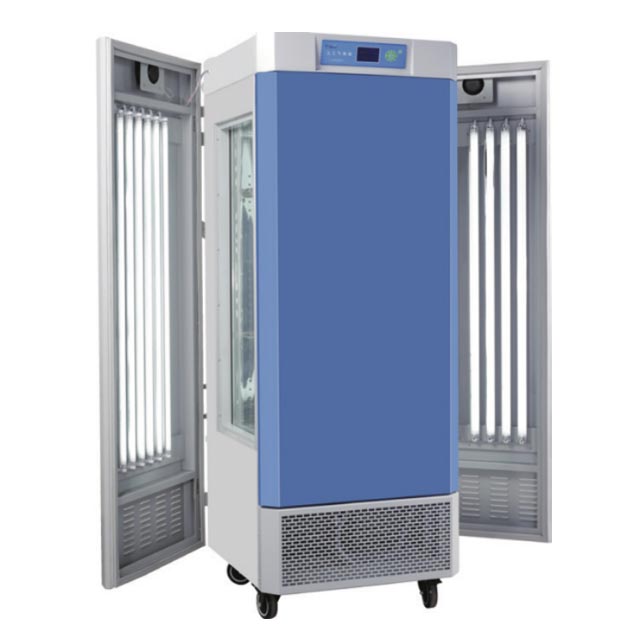

Illumination incubator/ Manual climatic box-Intelligent programmable

Share to:

With the over ten years experiences and follow the world’s environmental protection trend, our new generation illumination incubator/ manual climatic box win the leading position. Have broke through the continuous long-run operation defect and providing the high quality and satisfactory products with humanized design to the global clients.

  • SM-MGC-250BP-2/SM-MGC-350BP-2/SM-MGC-450BP-2/SM-MGC-350HP-2/SM-MGC-450HP-2/SM-MGC-800BP-2/SM-MGC-1000BP-2/SM-MGC-800HP-2/SM-MGC-1000HP-2/SM-MGC-1500BP-2/SM-MGC-1500HP-2
  • Sanwood

Product Description

Product features:

Humanized design

● New design with fluoride-free techniques, bring you healthy life.

● Humanized button, menu operation, various data display.

● Mirror finished stainless steel liner, semicircle design(Four corners), easy cleaning, rack adjustable.


 Intelligent control techniques

● Simulate the day & night temperature change, and nature’s Multi-directional light source.

● Users’ setting program can be record automatically, and restart when outage.

● Automatic control of circulating fan speed, avoiding the volatilization of samples effectively.


 Intelligent Multi-segments Programmable control

 ● Program control temperature, humidity, illumination and time, simplify the complicated experimental process, truly put automatic control into effect.


 Continuous operation techniques

 ● Two sets international compressors automatic alternation, ensure the long-run experiment working normal.


 Self-diagnostic function

 ● LCD screen will display the error information when the device breaking down.


 Safety function

 ● Independent temperature warning system; sound-light alarm(standard).

 ● Over temperature and low temperature alarm.


 Data control system(Optional choice)

 ● RS485 connector and communication software

 ● Data record, data communication, graphic dynamic display, fault analysis.

 ● Printer data logging, conform to the GMP standard.


 Clapboard illumination system(Optional)

● To satisfy the requirement about even and stability of illumination, the clapboards are adjustable. Multi-layers illumination system are acceptable; Different modulator tube on different layer is viable.


Illumination automatically detected and control(optional)

● The attenuation of modulator tube aging problem is controlled by the Optical sensing.

Breaking through the supervision and control defect of plants’ illumination.


Wireless alarm system(SMS system)(Optional)


CO2 concentration supervision and control(Control)

(CO2 control range is 0~10%)

● Infrared sensor is the best choice for the plants’ illumination experiment.  The temperature and humidity will not affect the CO2 concentration of infrared sensor.


CO2 control range(Optional)

I: 0~1%II: 0~2%III: 0~10%(Pick One-out-three)


Technical parameters:

ModelSM-MGC-250BP-2SM-MGC-350BP-2 SM-MGC-350HP-2SM-MGC-800BP-2 SM-MGC-800HP-2 SM-MGC-1500BP-2SM-MGC-1500HP-2
SM-MGC-450BP-2SM-MGC-450HP-2SM-MGC-1000BP-2SM-MGC-1000HP-2
Volume250L300L      800L            1500L
450L1000L
Temperature control rangeUnder lighting: 10~50℃, without lighting: 0~50℃
Temperature distinguishability0.1℃
Temperature fluctuation±1℃
Humidity control range50~90%RH50~90%RH50~90%RH
Humidity deviation±5~7%RH±5~7%RH±5~7%RH
Illumination intensity0~12000LX0~20000LX0~30000LX 0~40000LX
0~25000LX0~35000LX
Six levels of adjustmentSix levels of adjustmentSix levels of adjustmentSix levels of adjustment
Light wayRack lightingThree sides lightingRack lighting(Double layer)Rack lighting(Double layer)
Process control functionSetting temperature, humidity, illumination separately;   30 programs, 2 steps per program can be preset,   Timing setting from 1~99 hrs.
Power input1700W1700W 1700W 3700W 3800W 5350W
2000W2050W4800W5000W
Power supplyAC220V  50HZAC380V  50HZ
Operating ambient temperature+5~30℃
Continuous operation timeContinuous long-time operation(Two sets imported whole-closed   compressors alternate automatically)
Liner dimension
    W×D×H(mm)
580×510×835520×550×1140 965×580×1430 1410×800×1500
700×550×1140900×580×1600
Outer dimension
    W×D×H(mm)
725×740×1550830×850×18501475×890×1780 1570×1475×2050
950×850×18501410×890×1950

Loading Bracket

(Standard)

3 pcs


Optional accessories(when picking this option, delivery need to be added 7 days)

1.RS485/232 connector and communication software;

2. Embedded printer;

3. USB disk data storage;

4. Wireless alarm system(SMS alarm system);

5. CO2 inlet hole(promoting plant growth);

6. CO2 controller(Imported infrared radiation CO2 sensor);

7. Illumination Control system


Remarks: Pick USB disk/RS485(232)/Printer one-out-three.

1.  Delivery time for 800L/1000L/1500L Illumination incubator/ climatic box is 30 days when picking order.

2.  Delivery time for wireless alarm system and illumination control system is 30 days when picking order.

3.  Delivery time for installing CO2 controller is 30 days when picking order.
