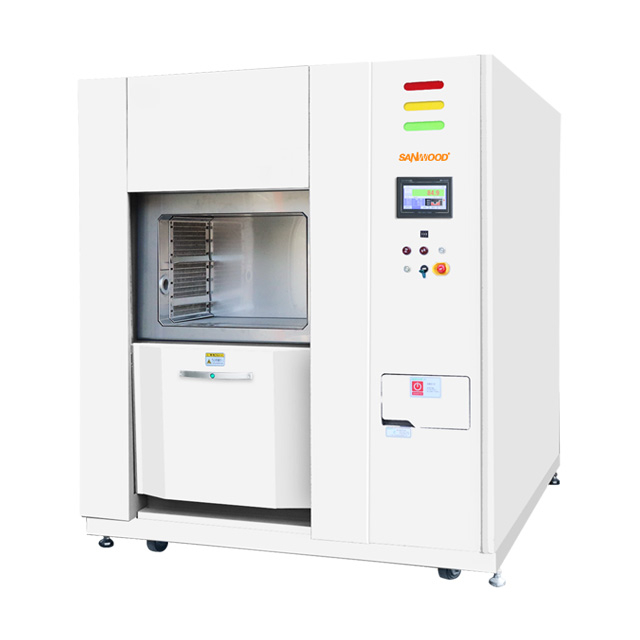

Three-zone Thermal Shock Test Chamber

Share to:

Three-zone Thermal Shock Test Chamber can be used in testing composite material and material structure’s result which under continuous environment with high temperature or low temperature shock in short time;

  • SM-3P-A
  • sanwood
  • 02

Product Description

Thermal Shock Test Chamber -General introduction

High low temperature(Three Zone)Thermal shock chamber is consist of High temperature test area(Pre-heating area), Low temperature test area(Pre-cooling)area and test area(RT), adopt independent wind path switching mode to transfer hot and cold air to test area make sure the high low temperature swift, the test sample shall not move during the test. The test chaber is suitable for the examination of the whole set of products, components, parts and materials subjected to rapid changes in temperature. The temperature impact test chamber are used in a shortest time to evaluate the test samples due to thermal expansion and contraction caused by the changes of chemical or physical damage. materials industry .


Thermal Shock Test Chamber -Product Feature:

1.Modern design, latest modular creation technology ,perfect control power.

2.The chamber will automatically defroste after it cycle for 700H or more

3.Patent design initiative observation window to achieve visual effects

4.Color screen 32 control system Ethernet E management, USB data access, APP mobile platform management

5.Programmable load power 4 ON/OFF output control, to protect the products safety

6.Unique air circulation system

7.Unique anti condensation function and over temperature, breezeless, smoke protection function

8.Can expand the network video monitoring function, and data test synchronization

9.The most environmentally friendly refrigeration capacity control, energy saving and fast rising/cooling temperature rate

10. Auto return to room temperature setting

11.Diagnostic system for information on operating times and possible failures.

12.The device can expand the remote service function and provide the machine using a mathematical disc


Thermal Shock Test Chamber- Product accessories

1.Standard equipment

Test product load power supply 3 groups

Each side of the left and right side has a 50mm Pin hole

Pin hole silicone plug 2 PCS

Stainless steel sample holder 2 PCS

Compressed air drying filter


Thermal Shock Test Chamber -Optional equipment

Isolated transducer, Protection device for testing product ( Sample protection to meet the standards NE60519-2.1993)

100mm diameter Pin hole

Nitrogen auxiliary device

Spare parts package

E management and Networking software

Video monitoring system

APP mobile platform management

Thermal Shock Test Chamber Specification:

Temperature Temperature impact
-70℃~150℃ (A:-45℃~150℃;B:-70℃~150℃;)
Low temperature
precooling time
25.0℃~-70.0℃  Within 60 mins 1.0~3.0℃/min
High temperature
preheating time
25.0℃~200.0℃  Within 60 mins  3.0~7.0℃/min
 conversion time
 recovery time
Within 5 minsWithin 10 mins
Material /
Internal materialStainless steel(SUS304)
External materialCold rolled steel sheet / powder spraying
 Heat insulating
100mm thickness polyurethane plate+10mm thickness mineral wool
FanCentrifugal blower
CompressorFrance Tecumseh, Germany Bock, Germany Bitzer
CondenserAir cooling, water coolingwater cooling
EvaporatorFin - and - Tube Heat Exchanger
HeaterNickel chromium alloy heating wire
Size Interior size(mm)
Outer size(mm)
Operating ambient temperature+5 ~ 35℃
Power supply380V AC  50/60Hz
ControllerSANWOOD SH5600:Equipped with RS232 port;(7.0 inch controller) USB data export )
