SM-F-160CA
Sanwood
SM-F-160CA
Product Description

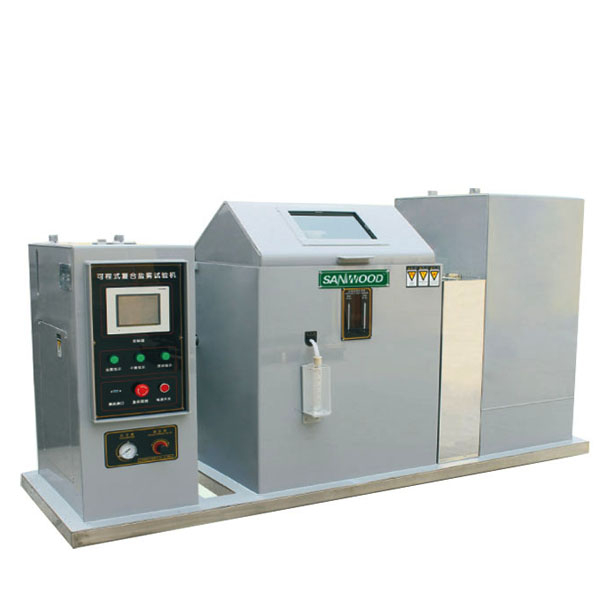

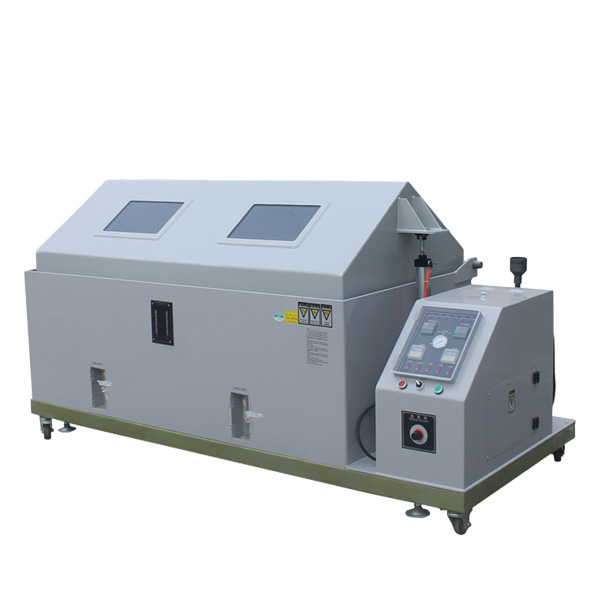

Temperature humidity and salty spray test chamber introduce:
Temperature humidity and salty spray test chamber can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.
Temperature humidity and salty spray test chamberr is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.
Temperature humidity and salty spray test chamber Characteristics:

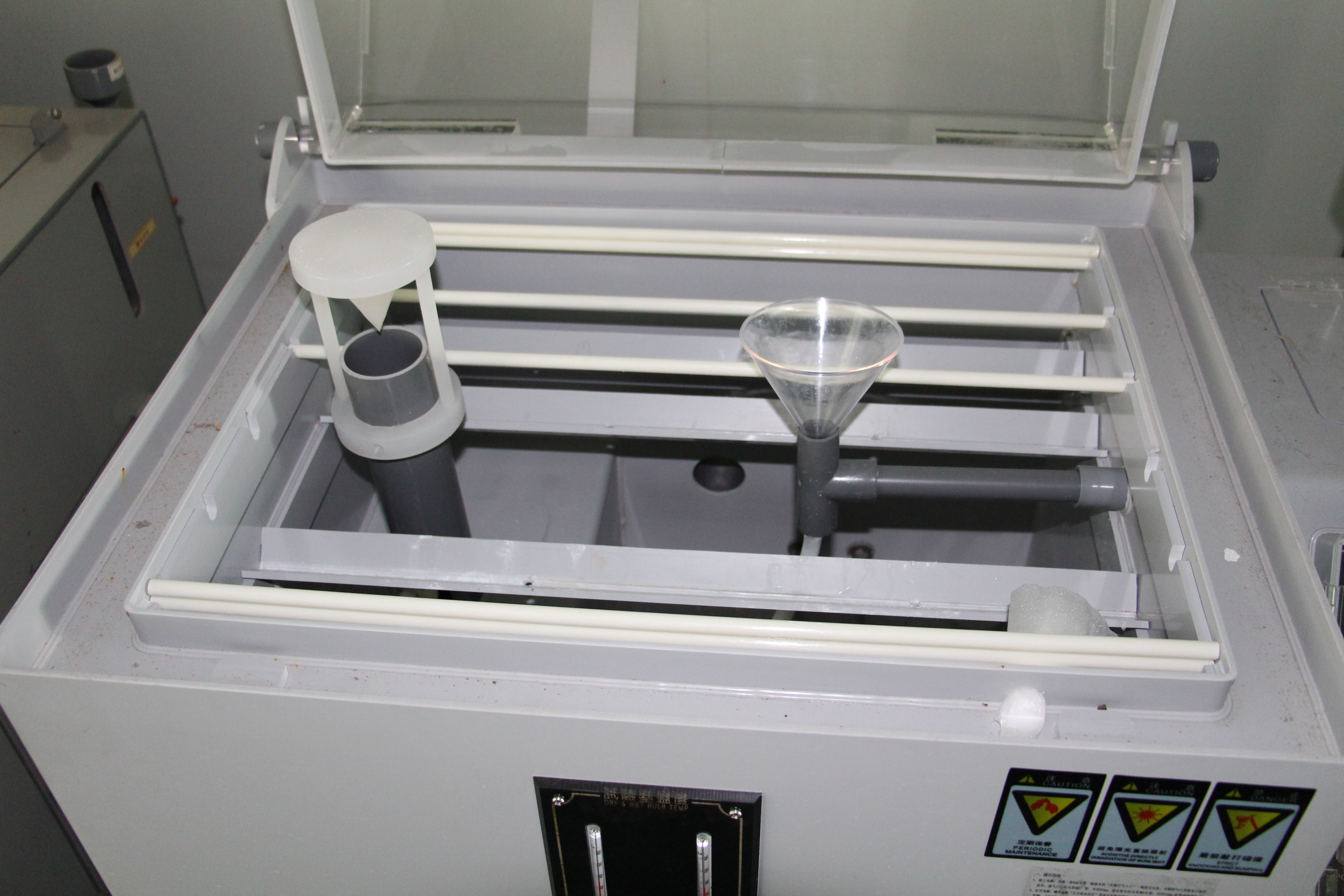

1. the spray nozzle the heart of teser adopt Bo Nute Principle which change saline water into atomization but no crystallization produced.
2. the controller is digital type microcomputer which delivers precision temparature
3. parameters show on the display screen such as temparature, humidity, pressure, spray capacity and time.
4.test specifications are accept worldwild.
Temperature humidity and salty spray test chamber specification:
| Model | SM-F-120CA | SM-F-160CA | SM-F-200CA | SM-F-180CA | SM-F-8000CA (piece together） | |
| Temperature range | -20℃～80℃ （A:25℃;B:0℃；C:-20℃;) | -70℃～180℃ | -40℃～80℃ | |||
| Humidity range | 20%RH～98%RH | |||||
| Temperature uniformity | ±2.0℃ | |||||
| Humidity uniformity | ±3.0%RH | |||||
| Inner size | W | 1200 | 1600 | 2000 | 1800 | 2000 |
| D | 1000 | 1000 | 1200 | 1000 | 2000 | |
| H | 600 | 550 | 600 | 1000 | 2000 | |
| Outer size | W | 2200 | 2600 | 3000 | 2800 | 3200 |
| D | 1200 | 1450 | 1650 | 1450 | 2350 | |
| H | 1450 | 1550 | 1600 | 2150 | 2800 | |
| Testing room volume（L) | 480L | 800L | 1440L | 1800L | 8000L | |
| Brine tank capacity（L) | 15 | 25 | 40 | 80L | 80L | |
| Max current(A) | 15 | 18 | 22 | 45 | 65 | |
| Max Consumption Power（KW) | 3.5 | 5 | 7 | 17.5 | 23 | |
| Power supply | AC220V、50HZ | AC380V、50HZ | ||||
| Operating ambient temperature, humidity | <35℃，<85%RH | |||||
| Testing room temperature | Brine test method(NSS ACSS)35℃±1℃/Erosion-resistant testing method (CASS)50℃±1℃ | |||||
| Pressure Pot Temperature | Brine test method(NSS ACSS)47℃±1℃/Erosion-resistant testing method(CASS)63℃±1℃ | |||||
| Brine solubility | 5% Sodium Chloride Solution or add 0.26 grams copper dichloride in the 5% Sodium Chloride Solution per liter (CuCl2 2H2O) | |||||
| PH | 6.5~7.2 3.0~3.2 | |||||
| Compressed air pressure | 1.00±0.01kgf/cm2 | |||||
| Spray quantity | 1.0~2.0ml/80cm2/h (Collect 16 hours at least, take their average) | |||||
| Inside and outside material | Imported corrosion resistant, anti-aging, high strength PVC board | SUS316 stainless steel | ||||
| Heater | Corrosion resistance U type titanium tube | |||||
| Temperature controller | LED digital display temperature controller, touch screen controller | |||||
| Spraying mode | Continuous,intermittent spraying | |||||
| Defrosting device | No | Yes | ||||
| Safety device | Over temperature protection switch, leakage protection, status warning lamp | |||||
