MIL-STD 810G High & Low temperature,tempearture shock and humidity test requirements and testing methods:

Views:31     Author:Site Editor     Publish Time: 2019-06-25      Origin:Site

MIL-STD 810G High & Low temperature,tempearture shock and humidity test requirements and testing methods


MIL-STD 810G High & Low temperature,tempearture shock and humidity test requirements and testing methods:


1. High temperature testing:

-For storage: requires to run 7 phases of 24-hour as a circle with tempeature range +30C to +63C(no humidity needed);

-For operation: requires to run 3 phases of 24-hour as a circle with temperature range +30C to +43C(no humidity needed);


2. Low temperature testing:

-For storage: requires to run 4 hours as a circle with constant tempeature-33C (no humidity needed);

-For operation: requires to run 4 hours as a circle with constant tempeature-21C (no humidity needed);


3. Temperature shock:

-Single cycle shock from constant extreme temperature:

-1 cycle 30 minutes for low and 30 minutes for high with low temperature -33C and high temperature +63C;


4. Humidity:

-Choose temperature range +30C to +60C,setting humidity value to be 95%(+/-4%),24 hours as a cycle and run 10 days;


QQ图片20190625143532

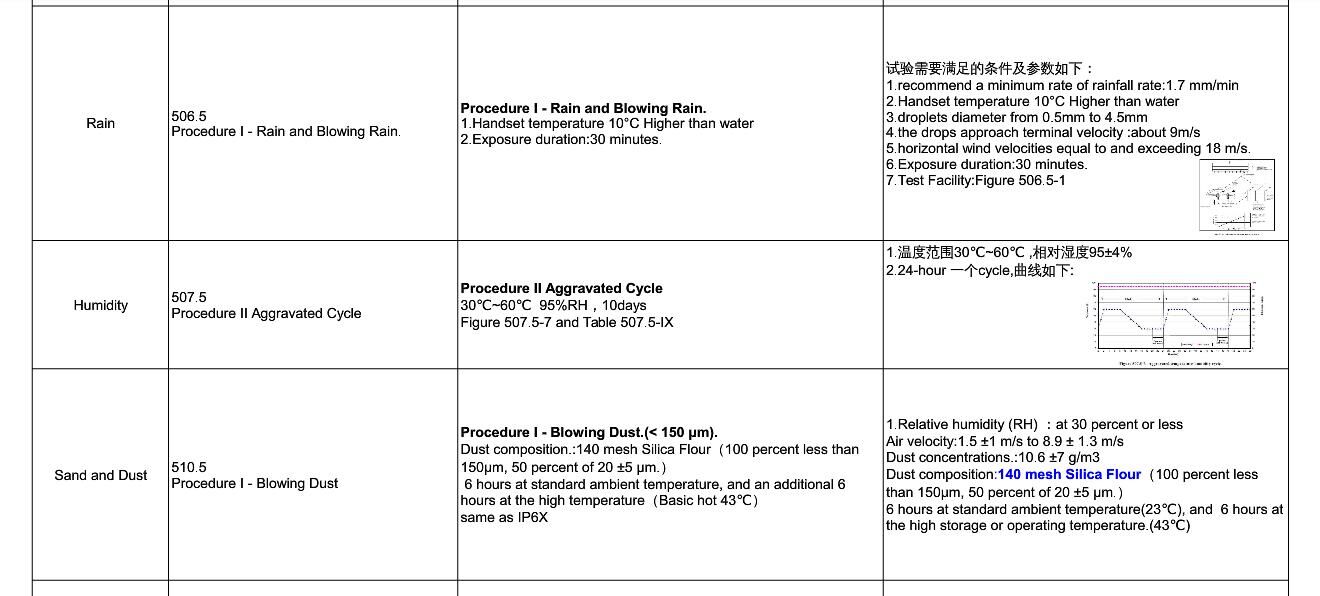

QQ图片20190625143546


Sanwood Environmental Chambers Co.,Ltd, based in Taiwan. We are a direct factory which has specialized in

manufacturing environmental test chambers for 22 years.

Our products have exported to more than 40 countries, included USA, UK, Russia, Italy, Poland, Switzerland, etc.

微信图片_20181228112428



We mainly produce:

1. Temperature & humidity test chamber ( Temperature range: -75~+180C, Humidity range: 10%~98%RH)

2. High low temperature test chamber( Temperature range: -75~+180C)

3. UV weathering test chamber

4. Xenon lamp accelerated aging test chamber

5. Ozone accelerated aging test chamber

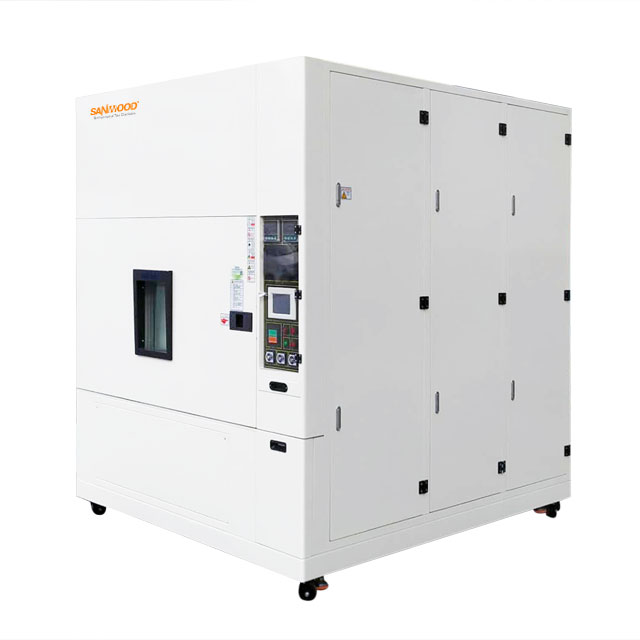

6. Thermal shock test chamber( Two-zone type and three-zone type)

7. Rapid temperature change test chamber Heating & cooling rate: 5C/min, 10C/min, 15C/min

8. Salt spray corrosion test chamber

9. Dust test chamber

10. Rain test chamber

11. Temperature & altitude test chamber

12. Temperature, humidity and vibration combined chamber

13. (Vacuum) drying oven

14. Vibration test system
