3-DOF Simulation Table

loading

Share to:
sharethis sharing button

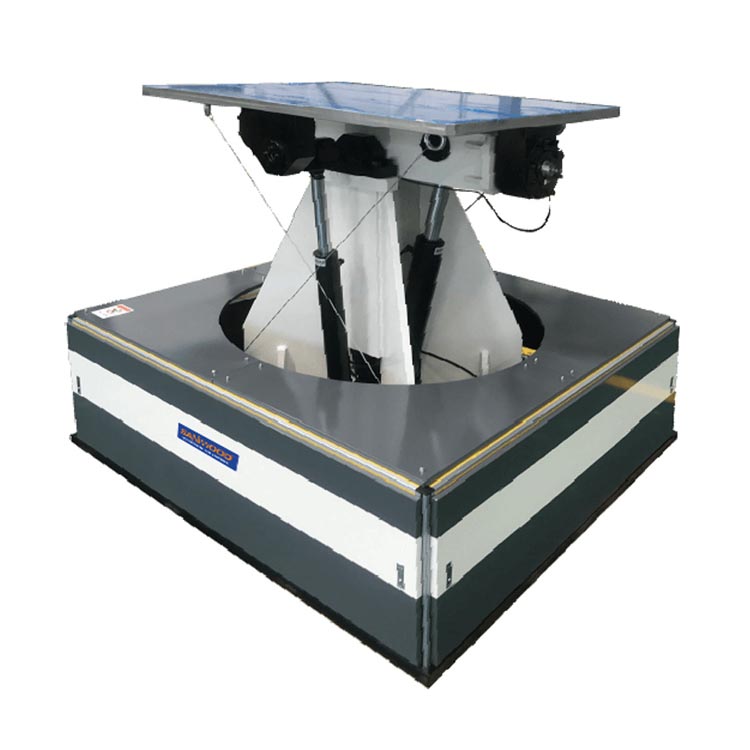

3-DOF Simulation Table simulates various mechanical, electrical, and electronic products installed on ships, seaplanes, and other equipment to perform sway and tilt tests to determine the ability and structural integrity of the product to withstand severe sway and tilt requirements. The tilt test is mainly applicable to large-angle tilt caused by ship damage, manipulation, imbalance in loading and unloading, and wind.

The sway test is mainly applicable to long-term swaying of the ship due to external forces such as wind and waves, which must be maintained normally or products that work reliably, and products that have a significant impact on their performance in a rocking environment.
Availability:
Quantity:

Product Description

3-DOF Simulation Table simulates various mechanical, electrical, and electronic products installed on ships, seaplanes, and other equipment to perform sway and tilt tests to determine the ability and structural integrity of the product to withstand severe sway and tilt requirements. The tilt test is mainly applicable to large-angle tilt caused by ship damage, manipulation, imbalance in loading and unloading, and wind.


The sway test is mainly applicable to long-term swaying of the ship due to external forces such as wind and waves, which must be maintained normally or products that work reliably, and products that have a significant impact on their performance in a rocking environment.


Features


  • Based on the stable Windows OS and support automatic remote-control interface, the operator can accurately complete the tilting and swing test by entering simple values.



  • The operation interface is mainly based on the real-time display of data curve, it also can display the test parameters, system status, and test progress.



  • It can realize the functions of sine signal, self-closed loop adjustment, various function control and alarm prompt.


  • The functions of roll, pitch, head-roll and tilt tests can be performed on the same platform.


Technical Specifications


   ModelSM15- 100SM15- 300SM15- 500SM15- 1000SM15- 1500SM15- 2000SM15- 3000SM15- 5000SM15- 8000SM15- 10T
Parameters
Max. Load
(kg)
10030050010001500200030005000800010000
Height of Specimen COG (mm)500~1000(customized   by product)
Yawing Angular
Displacement
±10°
Rolling Angular
Displacement
±45°
Pitching Angular
Displacement
±30°
Rolling Tilting Angular
Displacement
±45°
Pitching Tilting Angular
Displacement
±30°
Table size (mm)800×8001000×10001350×10001500×12001600×14001800×16002000×18002500×22003000×2500
Power Supply and Consumption PowerAC380VAC380VAC380V 37kVAAC380V 45kVAAC380V 55kVAAC380V 70kVAAC380V 90kVAAC380V 110kVAAC380V 150kVA
 20kVA22kVA
Weight (kg)15001800200030003500400050006000800010000
Working EnvironmentTemperature Range: 0~40℃,   Humidity ≤80% (no condense)
StandardsIEC60068-2
