AGREE Chambers

Share to:

Sanwood have 13 process and 5 times quality control to ensure the accurate control of all details for AGREE Test Chamber,EES and vibration test chamber,Temperature humidity and vibration test chamber,Comprehensive test chamber,Agree chamber
The temperature&humidity&vibration three comprehensive test machine is integrated with mechanical stress test such as temperature, humidity and vibration. When the test system is working, the (high temperature,low temperature and temperature change) stress ,temperature stress, vibration stress and the electric stress should be applied to the specified combination mode and the periodic space operation, simultaneously or separately.

Quantity:
  • SM-MVH-3400-CC
  • Sanwood
  • SM-MVH-3400-CC

Product Description

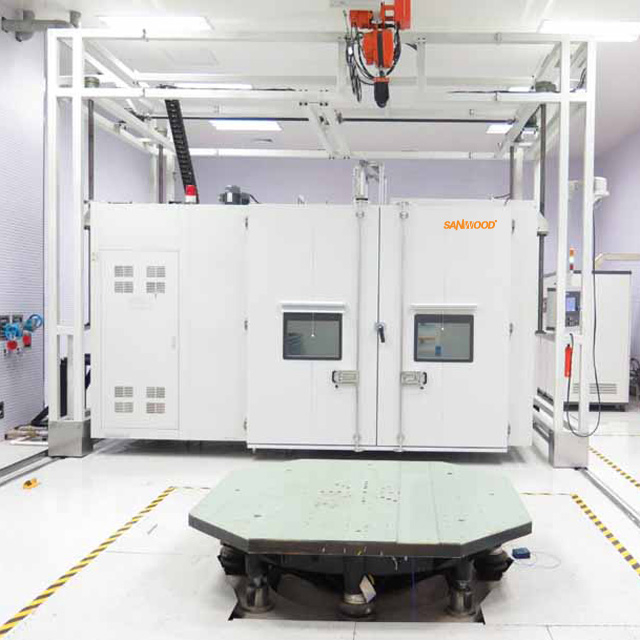

AGREE Chambers Brief introduction
AGREE Test Chamber is suitable for high temperature, low temperature, high low temperature cycle and temperature stress screening (ESS) test for whole machine products and spare parts. The vibration table is connected with the constant temperature humidity test, then it can realize the temperature, humidity, vibration comprehensive test.

Temperature humidity and vibration test chamber7


SANWOOD AGREE Chambers advantages
1.Temperature rise or cooling capacity can be designed as high as 40C/min temperature change rate
2.Temperature humidity and vibration test chamber Specially designed dry air equipment, to protect the sample surface condense during the testing
3. Modern design, latest modular creation technology ,perfect control power.
4.Color screen 32 bit control system, Ethernet E management , USB data storage function, APP mobile platform management
5. AGREE Chamber Programmable load power 4 ON/OFF output control, to protect the products safety
6. Unique air circulation system
7. Equipped with equipment overload, overheat, abnormal power supply, overpressure, fault detection, etc. protective measures
8. Test procedure has humanized design, like intelligent power off reset, automatic memory continued and automatic origin starting function, etc.
9.Independent product have anti condensation function and over temperature, calm, smoke protection function
10. Auto return to room temperature setting
11.Diagnostic system for information on operating times and possible failures.
12.The device can expand the remote service function and provide the machine using a mathematical disc
13.Multi-language selection: Chinese, English, Russian, Korean, Japanese, German  multilingual language switching

Temperature,-humidity-and-vibration-test-chamber3

AGREE  Chambers Product accessories
1.AGREE Test Chamber Standard equipment
Test product load power supply 3 groups
Each side of the left and right side has a 100mm Pin hole
Pin hole silicone plug 2 PCS
Compressed air drying filter
20L water storage tank 1 PCS
Pure water filter 1 PCS
Matched blind plate
Supporting vertical hole bottom plate

2.AGREE Chambers Optional equipment
Isolated transducer, Protection device for testing product ( Sample protection to meet the standards NE60519-2.1993)
50mm diameter Pin hole
Automatic water supply device
Nitrogen auxiliary device
Spare parts package
E management and Networking software
Video monitoring system
APP mobile platform management
Supporting horizontal hole bottom plate


AGREE Chambers Specification:


Temperature,-humidity-and-vibration-test-chamber


Product Catalog:

AGREE Test Chamber.pdf

Please consult the sales for specific technical parameters, SANWOOD reserves the right of explanation.
