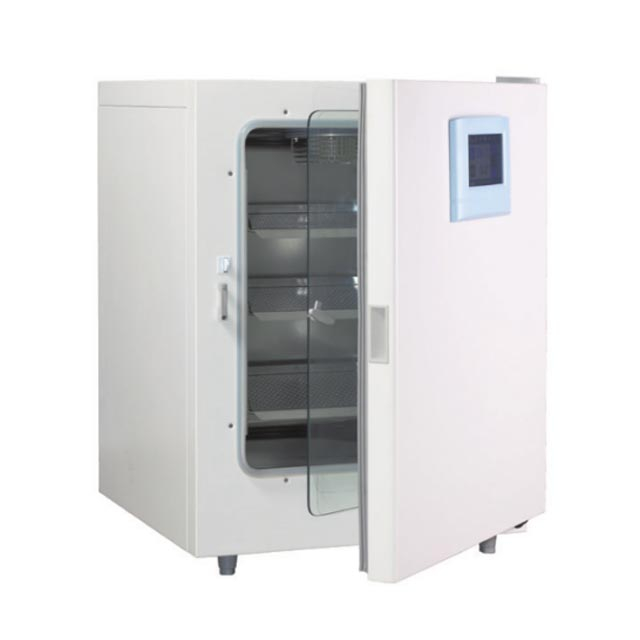

Product Description
Product features:
◆Touch screen controller
● Large touch screen instead, easily operation and program editing. English-Chinese languages for chosen.
● Temperature, humidity and CO2 concentration Instant operation curve shown. Error alarm and door-open information included.
● Screen locking function. Avoiding the mistaken human touch.
● 72 hours operation record, convenient for users to trace the information.
● RS-485 connector, program the process in computer, supervise the experimental process.
CO2 concentration control system
● Imported infrared sensor control
Infrared sensor is the best choice when open the door frequently; Can keep the CO2 concentration at 5% stably.
Temperature control
A. Incubator temperature control system
● Pt100 temperature detector, accuracy control. 3 minutes temperature recovery time.
B. Door temperature heating system
● The inner door of CO2 incubator can be warm-up, prevents the condensate water occur and bring pollution to the samples.
C. Environmental temperature supervision system
● Independent environmental temperature detector, heating system automatically adjust. Avoiding the inner high temperature occurs.
D. Over temperature protection system
● Independent temperature control system. When the incubator temperature goes beyond control, over temperature protection system will start working and stop warm-up, sound-light alarm.
E. Outage alarm system
● Real-time detection, sound-light alarm when electricity outage.
Sterilization system
A. 90℃ high temperature with wet and heat sterilization system.
● Microorganism including Bacteria, mycete, mycoplasma will be wipe out. Provide an safe experimental environment to clients.
● Easy operation: Press the sterilization button, bacteria in all parts will be wipe-out. 18 hours sterilization.
B. UV sterilization system
● The UV lamp install inside the incubator behind the walls, sterilize the Bacteria regularly;
Automatic control of circulating fan speed
● The speed of circulating fan can be control automatically; Avoiding the volatilization of samples.
High efficiency filter
A. Microorganism high efficiency filter
● The inlet equip with the microorganism high efficiency filter, can filter 99.99% bacteria which diameter more than 0.3μm.
B. HEPA high efficiency filter(Optional choice)
● Filter bacteria and dust from the inlet hole, make the incubator stay in germ free condition. It takes 5 minutes only to recover the air quality inside to 100% degree. Easy installation. No need tools.
Safety function
● Over temperature alarm, | ●incubator sensor error alarm, | ●door temperature sensor error alarm, |
● CO2 over concentration alarm, | ● outage alarm, |
Data record and fault diagnosis(Optional choice)
● All data can be downloaded from the RS485 connector, diagnose
Faults immediately.
● Wireless alarm system(SMS alarm system)
Optional accessories(when picking this option, delivery need to be added 14 days)
1. RS485/232 connector and communication;
2. Special CO2 reducing valve;
3. Humidity Display system;
4. Wireless alarm system(SMS alarm system);
5. HEPA high efficiency filter(Optional choice);
6. Provide 3Q verification and calibration service.
Technical parameters:
Model | SM-BPN-80RHP | SM-BPN-150RHP | SM-BPN-240RHP | SM-BPN-170RWP | SM-BPN-240RWP | |
Power supply | AC220V/50Hz | |||||
Input power | 500W | 700W | 1000W | 700W | 1000W | |
Heating method | Air-jacketed micro-computer control | Water-jacketed micro-computer control | ||||
Temperature control range | RT+5~50℃ | |||||
Operating ambient temperature | +5~30℃ | |||||
Temperature fluctuation | ±0 1℃ | |||||
CO2 control range | 0~20% | |||||
CO2 control accuracy | ±0.1% Infrared sensor | |||||
CO2 recovery time | Recovery to 5%≤3 minutes | |||||
Temperature recovery time | Recovery to 37℃≤8 minutes | |||||
Relative humidity | Natural evaporation≥90% | |||||
Volume | 80L | 155L | 233L | 170L | 240L | |
Liner dimension (W×D×H mm) | 400×450×500 | 480×530×610 | 600×630×670 | 530×460×720 | 600×520×780 | |
Outside dimension (W×D×H mm) | 590×687×790 | 670×770×880 | 790×840×940 | 684×700×960 | 754×760×1020 | |
Loading Bracket | 2 pcs | 3 pcs | 3 pcs | |||
(Standard) | ||||||
UV lamp sterilization | 90℃ high temperature and humidity sterilization(UV lamp sterilization optional choice) | UV lamp sterilization |
Remarks: All technical data measured under the 25℃ condition.
