Battery High Low Temperature Test Chamber

Battery high low temperature test chamber is designed to test all types of batteries, including lithium-ion batteries. The battery test chamber has many safety functions built into the test chamber, which can handle battery tests and prevent safety accidents.

Charge/discharge cycle testing, which determines the number of times a battery can be used by evaluating it until it deteriorates after repeated cycles of charging and discharging.

In the laboratories involved in battery testing, tests based on charge and discharge cycles are a key activity. The instruments used for this type of test usually perform harsh and lengthy test protocols on the battery and can usually be connected to various instruments.

Battery High Low Temperature  Test Chamber Structure and Characteristics:

Battery Temperature Explosion-proof Test Chamber composed of the chamber, refrigeration systems, heating systems, air circulation system and control system.

Battery Temperature Explosion-proof Test Chamber is made of high quality SUS#304 stainless steel material,the outer shell adopts A3 steel plate,surface electrostatic spraying.

3.Insulation system uses superfine fiberglass wool or polyurethane foam so as to ensure the temperature of inside chamber.

4.Temperature and humidity control adopts Korean import TEMI360 programmable touch screen temperature and humidity controller, with automatic calculation of PID function.

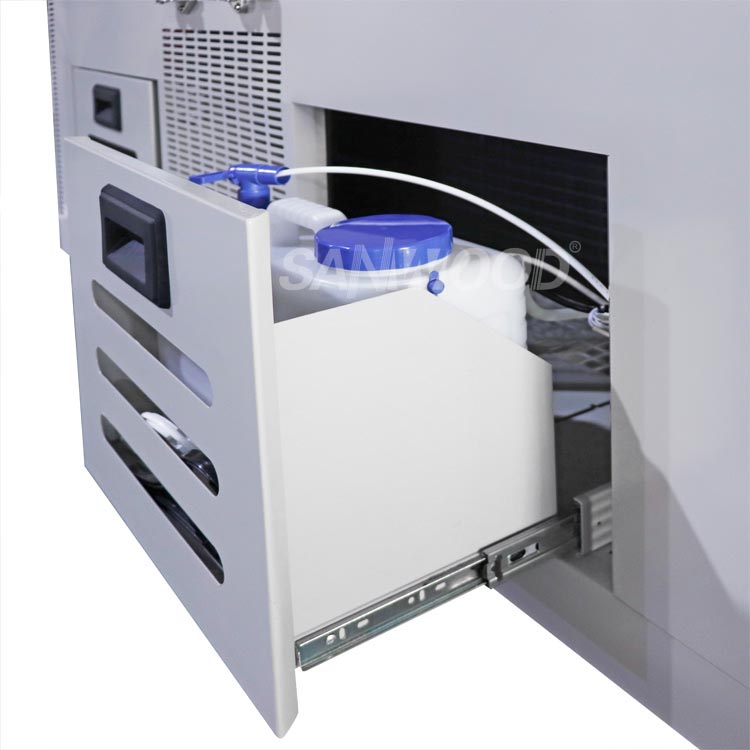

5.Adopts steam humidifying method, automatic water circulation loop,with functions of automatic filling water.

6.Refrigeration system adopts original France "Taikang" refrigeration unit and full sets of refrigeration parts.

7.Input mode PT100 sensor.

8.The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operating life of the machine and decrease the failure rate.

9.Powerful multi-wing type air circulation which can ensure even temperature distribution inside the working chamber.

10.With larger transparent viewing window and lighting inside to observe the test.

11.Door seal adopts silicone rubber material which can avoid aging and hardening in high and low temperature conditions.

12.Standard configuration with one test hole on the left side of the chamber for easy testing operation and temperature measurement.

13.With various of safety protection device such as leakage and outage protection,compressor overpressure protection,overload fusing protection,audio signal alarm.

High and Low Temperature Explosion-proof Test Chamber Specification:

Product Catalog:

Battery Explosion-proof High and Low Temperature Test Chamber .pdf

※Please consult the sales for specific technical parameters, SANWOOD reserves the right of explanation.
