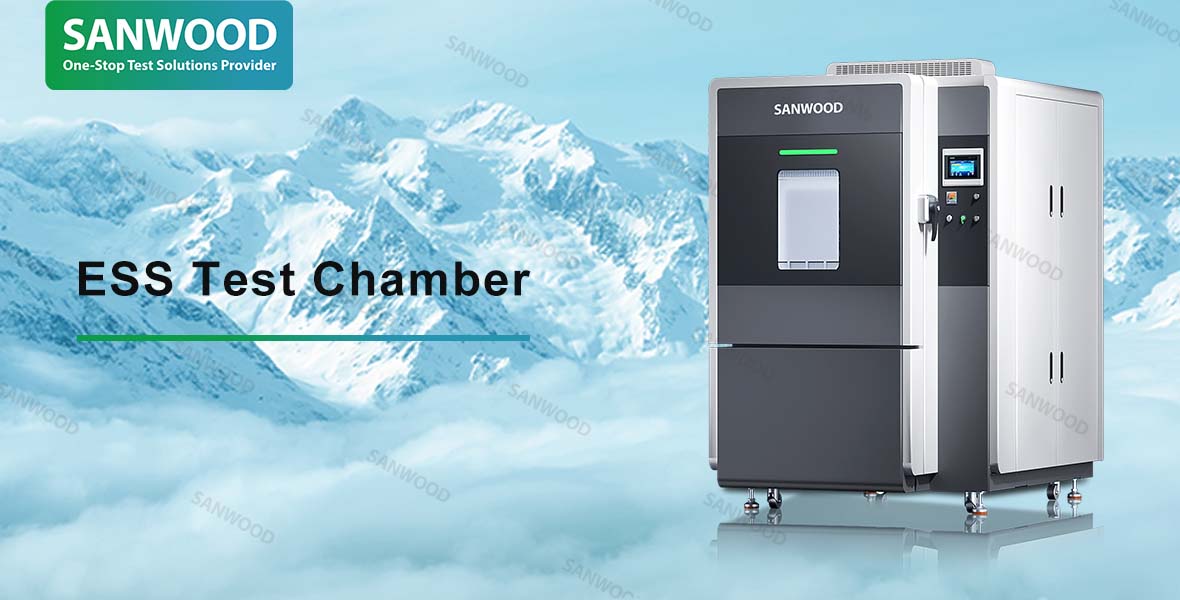

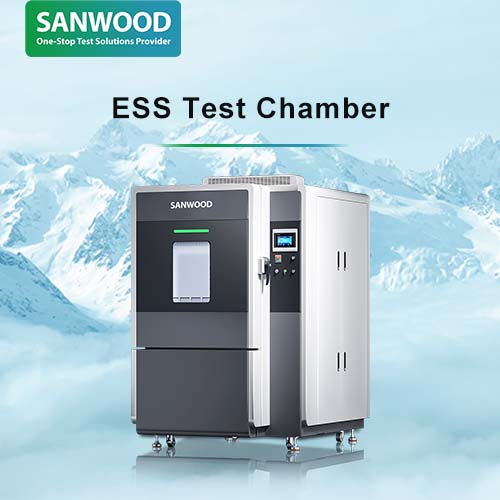

Sanwood Technology's ESS Test Chamber is a device designed to simulate rapid temperature change environments. Its core feature is the ability to achieve high-speed heating or cooling, with temperature change rates typically ranging from 5°C to 25°C per minute. This process utilizes the expansion and contraction cycles caused by temperature differences in materials to accelerate material aging, detect product defects, or verify performance under extreme temperature conditions.
Equipment Parameters
Temperature range: -70°C to +180°C
Humidity range: 20%RH to 98%RH
Temperature fluctuation: ≤±0.5°C (unloaded, steady-state condition)
Temperature uniformity: ≤1.5°C (-40°C to 100°C) (unloaded, steady-state condition)
≤2.0℃ (100.1℃ to 180℃ or -70℃ to -40.1℃) (unloaded, steady state)
Temperature deviation: ≤±1.5℃ (-40℃ to +100℃) (unloaded, steady state)
≤±2.0°C (+100.1°C to +150°C or -70°C to -40.1°C) (no load, steady state)
Heating rate: -55°C to +155°C, (linear or non-linear: 5.0°C, 10.0°C, 15.0°C, 20.0°C, 25.0°C/min)
Cooling rate: +155°C to -55°C, (linear or non-linear: 5.0°C, 10.0°C, 15.0°C, 20.0°C, 25.0°C/min)
Application Areas
Electronics industry
IC chips, PCB boards: Testing solder joint cracking and material expansion coefficient compatibility under temperature cycling.
Semiconductor packaging: Evaluating the impact of rapid temperature changes on packaging structures.
Consumer electronics (mobile phones, computers): Simulating performance stability under extreme climatic conditions.
Automotive industry
In-vehicle electronics (ECUs, sensors): Verifying reliability under scenarios such as cold starts and high-temperature exposure.
Power batteries (EV batteries): Testing the impact of rapid temperature changes on battery lifespan.
Military and Aerospace
Avionics: Simulate the effects of rapid temperature changes at high altitudes on avionics equipment.
Missile/satellite components: Verify structural stability under extreme temperature shocks.
Military communication equipment: Test equipment reliability in battlefield environments.
Equipment Characteristics
Characteristics: Constant temperature change rate (e.g., 5°C/min, 10°C/min), with temperature rising or falling linearly over time.
Advantages: Suitable for tests requiring stable, predictable temperature changes (e.g., material durability testing)
Characteristics: Variable temperature change rate (e.g., fast then slow, stepwise changes), simulating sudden changes or complex temperature fluctuations in real-world environments.
Advantages: More closely mimics sudden temperature conditions in real-world environments (e.g., day-night temperature differences, sudden changes during equipment startup/shutdown).
Compliant Standards
GB/T 2423.34-2024 Environmental Testing Part 2: Test Methods Test Z/AD: Temperature/Humidity Combination Cycle Test
GB2423.22-2008 Environmental Testing of Electrical and Electronic Products Part 2: Test Methods Test Nb: Temperature Change with Specified Rate of Change
IEC 60068-3-5:2018 Environmental Testing - Part 3-5: Supporting Documents and Guidelines - Temperature Chamber Performance Verification
IEC 60068-2-14:2023 Environmental Testing - Part 2-14: Tests - Test N: Temperature Change
GB/T 2423.4-2008 Environmental Testing of Electrical and Electronic Products - Part 2: Test Methods - Test Db: Alternating Humidity and Heat
Sanwood Technology's ESS Test Chamber serves as a core device for reliability testing, precisely simulating extreme temperature environments to verify product performance stability under rapid high-low temperature changes. Whether operating with linear or non-linear temperature changes, this equipment meets the stringent testing requirements of industries such as electronics, automotive, military, low-altitude economy, and aerospace.
