Fast Change Rate Test Chambers

Share to:

Sanwood is the company capable of offering a series of Rapid ESS Test Chamber,Rapid Temperature Change Test Chamber,Environmental stress screening (ESS) test chamber,Environmental stress screening test chamber,Temperature Change Test Chamber
Energy-saving design: Adopting PID + PWM principle of VRF (refrigerant flow control) technology to achieve low-temperature energy-saving operation (electronic expansion valve according to thermal energy conditions refrigerant flow servo control technology) low temperature working state, the heater does not participate in the work, through PID + The PWM regulates the flow rate and flow direction of the refrigerant, and regulates the three-way flow of the refrigerant pipe, the cold bypass pipe, and the hot bypass pipe to achieve automatic constant temperature to the working chamber. This method can reduce energy consumption by 30% under low temperature conditions.

Quantity:
  • SM-KS-1000-CC
  • Sanwood
  • SM-KS-1000-CC

Product Description

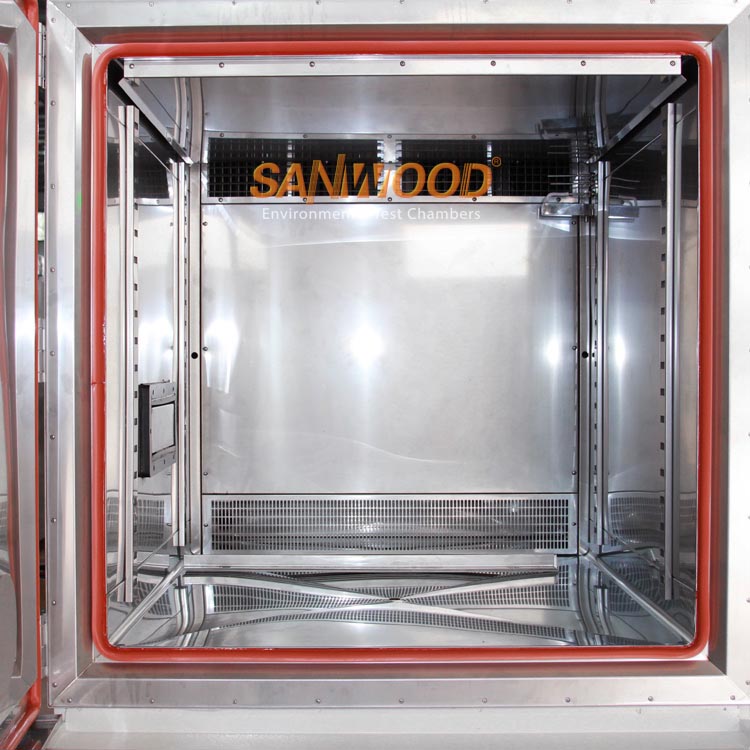

Fast Change Rate Test Chambers description:

Fast Change Rate Test Chambers is suitable for the whole product, parts and materials for high temperature, low temperature, high and low temperature circulating and temperature stress screening (ESS) test, and constant humidity and cyclic damp heat test. This type of machine mainly used to simulate the product in climate conditions, a temperature and humidity conditions or at ambient temperature and humidity conditions, detecting the product features and the adapt change ability. It’s the aviation, automobiles, home appliances, research and other fields necessary test equipment.

Fast Change Rate Test Chambers (3)


SANWOOD Fast Change Rate Test Chambers advantages:

1.Environmental stress screening (ESS) test chamber Can set the temperature variable rate of the different stress screening
2.Environmental stress screening test chamber Can perform a rapid temperature change (ESS), condensation test, high temperature and humidity test, temperature and humidity cycling test, etc.
3.Meet the requirements of stress screening test for electronic equipment
4.Switching temperature and average temperature these two kinds of test methods
5. Temperature Change Test Chamber Can set a variety of stress screening (fast temperature change rate) 5deg C/min,  10deg C/min,  15deg C/min experimental conditions
6.Meet the requirements of stress screening test for electronic equipment MIL-STD-2164, MIL-344A-4-16, MIL-2134A-19, NABMAT-9492, GJB-1032-90, GJB/Z34-5.1.6, IPC-9701....ETC.
7.Can carry out the two test methods, temperature test and average temperature test
8.With aluminum sheet test machine load capacity (non plastic load)
9.Single machine can perform fast temperature change (ESS), condensation test, high temperature and humidity test, temperature and humidity cycling test, etc.
10.Can screen the sample load with a large number
11.Built in two-way USB2.0 portable storage interface (can copy the test curve and load the test program)
12.Complete real-time test curve analysis shows that no time limit
13.Can be integrated with the E management system to monitor the management system
14.Multi-language selection: Chinese, English, Russian, Korean, Japanese, German  multilingual language switching.

Fast Change Rate Test Chambers (2)


Fast Change Rate Test Chambers accessories:

1.Standard equipment
Test product load power supply 3 groups
Each side of the left and right side has a 50mm Pin hole
Pin hole silicone plug 2 PCS
Stainless steel sample holder 2 PCS
20L water storage tank 1 PCS
Pure water filter 1 PCS

Fast Change Rate Test Chambers Specification:

Rapid-Temperature-Change-Test-Chamber


Please consult the sales for specific technical parameters, SANWOOD reserves the right of explanation.
