Views: 5 Author: Sanwood Technology Publish Time: 2025-07-31 Origin: Sanwood Technology

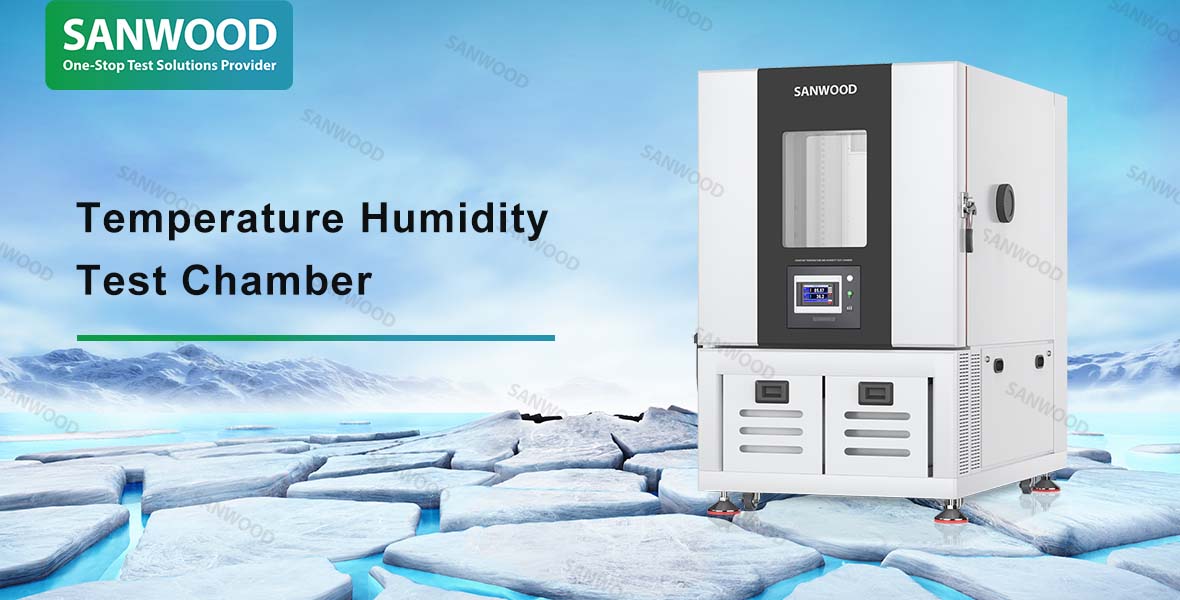

The automotive industry, electronic components, aerospace, and other industries all require humidity and heat test chambers for testing, which are used to simulate humidity and heat environments to assess product performance and reliability under specific conditions. The newly released GB/T 10586-2025 ‘Technical Specifications for Humidity and Heat Test Chambers’ clearly defines the testing methods, inspection rules, and technical requirements for humidity and heat testing equipment. Sanwood Technology's Temperature and Humidity Test Chambers comply with GB/T 10586-2025 ‘Technical Specifications for Humidity and Heat Test Chambers‘assisting enterprises in conducting product reliability testing.
Standard Explanation
As an important technical specification for environmental testing equipment, GB/T 10586-2025 ‘Technical Specifications for Humidity and Heat Test Chambers’ provides authoritative testing standards for the research, development, and production testing of various products, components, and materials. Test chambers used for humidity and heat testing during the research, development, production, and inspection of products, components, and materials are also applicable to similar humidity and heat test chambers.
Key Performance Indicators:
Temperature Deviation: ±2.0°C
Temperature fluctuation: ±0.5°C
Temperature uniformity: ≤1.0°C (requirement: 2°C to 98°C, relative humidity >75%)
≤2.0°C (requirement: 2°C to 98°C, relative humidity 5% to 75%)
Technical Parameters
Temperature Range: -40°C to +150°C
Temperature Fluctuation: ≤±0.5°C (unloaded, steady-state condition)
Temperature Deviation: ≤±1.5°C (-40°C to +100°C) (unloaded, steady-state condition)
≤±2.0°C (+100.1°C to +150°C) (unloaded, steady-state condition)
Temperature uniformity: ≤1.5°C (-40°C to +100°C) (unloaded, steady state)
≤2.0°C (+100.1°C to +150°C) (unloaded, steady state)
Humidity range: 20.0% RH to 98.0% RH
Humidity fluctuation: ±2.0% RH
Humidity deviation: ≤±3% RH (humidity ≥75% RH)
≤±5% RH (humidity <75% RH)
Equipment features
Full-temperature-range composite environmental simulation using PID+SSR intelligent algorithms to meet testing requirements across multiple fields such as material ageing and electronic component reliability.
Built-in fault warning system for real-time monitoring of compressor/sensor status, reducing maintenance costs.
Full-process data management, automatic recording of temperature and humidity curves, with USB/RS485 interfaces.
Multi-layer safety protection system: independent over-temperature monitor + earth leakage circuit breaker, providing multiple layers of protection for safety under extreme conditions.
Energy-efficient technology: variable-frequency compressor + intelligent defrosting.
The technical parameters of GB/T 10586-2025 ‘Technical Specifications for Humidity and Heat Test Chambers’ ensure the accuracy and reliability of test data, providing strong technical support for enterprise product quality control. Sanwood Technology's Temperature and Humidity Test Chambers comply with standard requirements, simulating product adaptability under extreme temperature and humidity conditions, and assisting enterprises in testing their high-temperature resistance, low-temperature resistance, and humidity resistance performance.
Sanwood Technology, with its precise environmental simulation capabilities and comprehensive testing service system, is committed to providing customers with efficient and reliable testing support to enhance product performance and achieve safety certification. For more professional testing solutions, please contact Sanwood Technology, and we will tailor professional services to meet your specific needs.
