High Speed Optical Measuring Instruments Powerful 2.5D With Software

Share to:

High Speed Optical Measuring Instruments Powerful 2.5D With Software is designed using latest CAD techniques to ensuer maximum performance and manufactured from materials best suited to the purpose for guaranteed longevity , drawing on the unparalleled technological expertise of a world leader in metrology.

Quantity:
  • DG862
  • AEH

Product Description


High Speed Optical Measuring Instruments Powerful 2.5D With Software Feature:

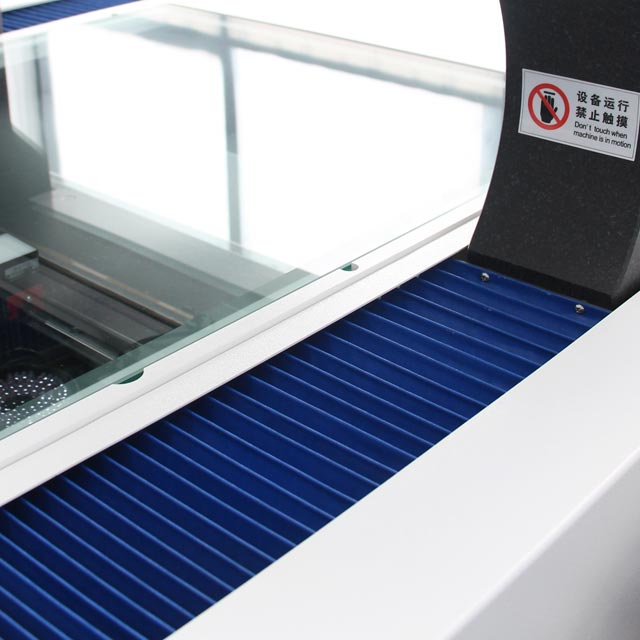

1.Movable bridge structure, automatic measurement for long stroke and workpiece keep static , the measuring way of machine movement, to ensure the measuring stability more effective.


2.Three axis CNC control;Full servo closed-loop control, the central drive, biaxial sliding


3.00 class barreled green machine, high precision and good stability


4.All guide rail imported from Japan, precice gears, no interval ,sensitive and reliable , accurate positioning and high precision movement.


5.Three axis adopts the Renishaw patch type grating ruler, with good temperature stability, and the resistance to deformation ability


6.All the mouse, the three dimensional lever automation control, easy to use


7.Automatic zoom optical lens, which can realize automatic zoom measurement


8.Programmable 3 ring 8 area circular surface light source, LED light source , coaxial light source



High Speed Optical Measuring Instruments Powerful 2.5D With Software Specification:


ModelSM-DG552SM-DG862SM-DG12150SM-DG15200
(XYZmm)Measure range500×500×200600×800×2001200×1500×2001500×2000×200
External size(mm)1480×1050×16101780*1150*16102800×1800×17403400×2200×1740

Can customize stroke according to customer requirement,minimum stroke(XYZ axis):400*300*200MM,

maximum stroke(XYZ axis):1500*2500*200MM

Computer table(optional)computer table size(additional)
weight(kg)1100150035005000
Measurement accuracy (um)XY(axis)4.0+L/2005.0+L/150um
Z(axis)4.5+L / 150µm
(speed)XY(axis)250MM/S
Z(axis)100MM/S
Max load(kg)20
Whole structure(main material)00 class green
Grating ruler0.5 UM RSF /Renishaw can be optional
control systemCNC Closed loop control system
transmission systemservo motor
Lighting source

8 area LED light source, paragraphs independent manipulation

 of the parallel LED light, programmable control

objective lens(X)6X automatic zoom lens, image magnification 18X-200X

Equipped with coaxial

optical(otional)

Equipped with coaxial optical(otional)
CCDAmerican industry black/ colorful CCD
screw rodGrind C3
slidewayP class
Working environmentTemperature 20℃±2℃,temperature change rate<2℃/hr,humidity30~80%
Vibraitionvibration<0.002g,vibration<15Hz
working voltage220V+10%, 50HZ-60HZ
Acceptance inspection wayglass line scale
