Home » Products » Thermal Shock Chamber » High low temperature(Two Zone)Thermal shock chamber

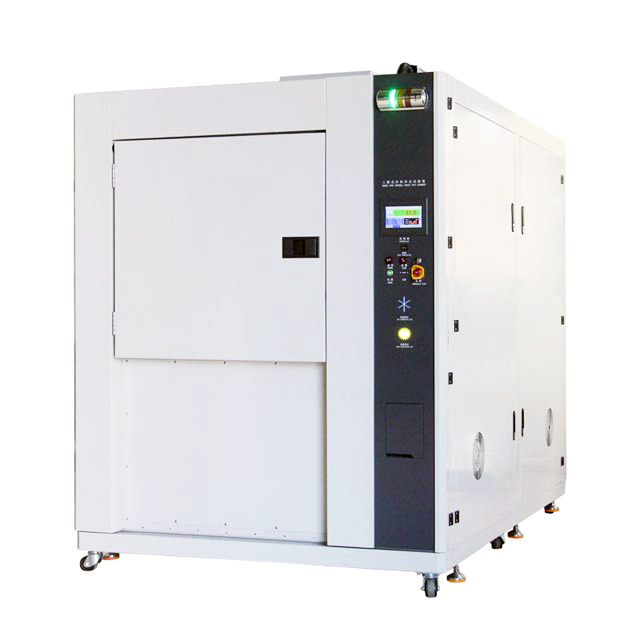

High low temperature(Two Zone)Thermal shock chamber

Share to:

Sanwood is a direct factory which has specialized in manufacturing High low temperature(Two Zone)Thermal shock chamber ,Two Zone Thermal Shock Test Chamber,Thermal Shock Test Chamber,Thermal Shock Chamber,Two Zone Thermal shock chamber for 23 years.
The thermal shock test chamber is suitable for testing equipment for solar photovoltaic modules, batteries, automotive parts, LED optoelectronics, semiconductors, aerospace, automobiles, home appliances, scientific research, etc., for testing and determining electrical, electronic and other products and materials. Parameters and performance of temperature and environmental impact changes in high and low temperature tests.

Quantity:
  • SM-2P-A
  • sanwood
  • SM-200-2P-A

Product Description


High low temperature(Two Zone)Thermal shock chamber  Briefly introduction:
High and low temperature (two cases) thermal shock test chamber system structure can be divided into two parts. Namely, high temperature tank (preheating zone), cryogenic tank (pre-cooling zone).

High low temperature(Two Zone)Thermal shock chamber4


High low temperature(Two Zone)Thermal shock chamber  Testing principle
Two Zone Thermal Shock Test Chamber Testing principle mainly through controlling the portable basket (test samples District) to quickly move between cryogenic tank and high temperature tank to achieve rapid thermal shock test. The whole testing process test samples along with mobile gondola to move together. The test chaber is suitable for the examination of the whole set of products, components, parts and materials subjected to rapid changes in temperature. The temperature impact test chamber are used in a shortest time to evaluate the test samples due to thermal expansion and contraction caused by the changes of chemical or physical damage.

Three-zone Thermal Shock Test Chamber6


The advantages of SANWOOD High low temperature(Two Zone)Thermal shock chamber
1.Thermal Shock Test Chamber Temperature and humidity setting protection
2.Two zone thermal shock test chamber. Air pressure driven test area(sample)
3.Error failure medical record table cartilage device
4.HFC environmentally friendly refrigerant, SWEP plate heat exchanger, two type refrigeration system
5.Optimal structure and high efficiency refrigeration machinery design
6.Air intakes and returns with sensor control
7.Sever Valve, Kinetic energy automatic load control
8.Testing range: 150(60)℃~ (-10)-65℃
9.50% power saving efficiency and automatic servo control
10.Compatible with BUS CM remote monitoring management system
11.Can expanded: LN2V liquid nitrogen rapid cooling control device
12.Thermal shock test chamber movement time is 10 seconds.Can meet MIL, IEC and JIS standard.
13.Wind valve switching time is 10 seconds
14. Thermal shock test chamber temperature recovery time is 5 minutes, can meet the test specification
15.The end of the experiment, the product automatically return to the normal temperature to avoid frost dew
16.The world's first built-in USB2.0 interface digital recorder (recording can be plugged in at any time)
17.Industrial grade upright full-color touch multilingual programmable control system
18.The world's first standard shipping included USB2.0 and disk storage machine dual interface
19.The protective mechanism of return to normal temperature after the test is finished.
20.The world's first complete test curve analysis shows that there is no time limit.


High low temperature(Two Zone)Thermal shock chamber  Specification:

Two-Zone-Thermal-ShockTest-Chamber-1

High-low-temperature(Two-Zone)Thermal-shock-chamber


Product Catalog:

Two Zone Thermal Shock Chamber .pdf

Please consult the sales for specific technical parameters, SANWOOD reserves the right of explanation.
