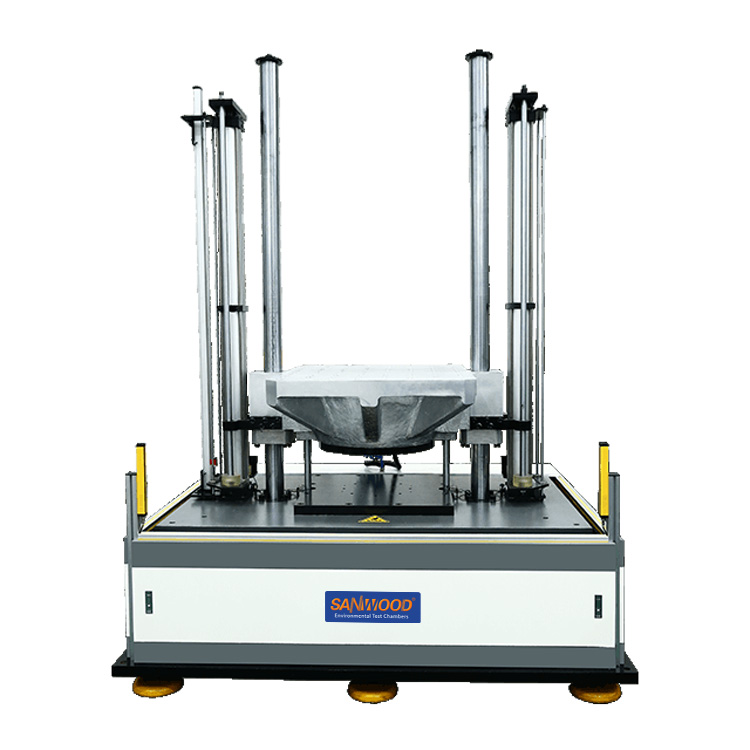

Hydraulic Vertical Shock Test System

Share to:
Hydraulic Vertical Shock Test System is used to measure and determine the impact resistance of products or packaging, and to evaluate the reliability and structural integrity of products in a shock environment. The system can perform conventional half-sine wave, post-peak sawtooth wave, square wave and other waveform shock tests to achieve the shock wave and impact energy that the product is subjected to in the actual environment, thereby improving the product or packaging structure.
Quantity:

Product Description

SM01 Hydraulic Vertical Shock Test System is used to measure and determine the impact resistance of products or packaging, and to evaluate the reliability and structural integrity of products in a shock environment. The system can perform conventional half-sine wave, post-peak sawtooth wave, square wave and other waveform shock tests to achieve the shock wave and impact energy that the product is subjected to in the actual environment, thereby improving the product or packaging structure.



Feature:

  • Windows-based stable control system, full-automatic remote-control interface;

  • Multi-track guide posts combined with good lubricity and noise free hydraulic balance lifting system to achieve stable shifting;

  • Automatic control of lifting height with high accuracy and good repeatability;

  • Adopts the high strength and hardness cast aluminum table, which has high first-order resonance frequency, featured with low noise and no clutter;

  • Built-in brake mechanism to avoid secondary rebound collisions and more secure positioning of the table;

  • Multiple waveforms: it can perform conventional half-sine waves, post-peak sawtooth waves, or square waves;

  • The self-buffer & vibration isolation base does not require a special foundation, and easy to install;

  • One-stop test: built-in test standards meet various requirements to help users to complete test in one stop.


Technical Specifications

ModelSM01-2SM01-5SM01-25SM01-50SM01-100SM01-200SM01-400SM01-600SM01-1000SM01-1500
Parameters
Rated   Load (kg)25255010020040060010001500
Table   Size (mm)115×115200×200300×300500×500600×600800×6001000×8001000×10001200×10001500×1200
Peak   Acc. (g)Half-sine5~3k20~2K15~3k15~60015~60015~30015~200
Post-peak
10~10015~10015~20015~10010~50
Sawtooth
Trapezoid
15~10015~50
Pulse   Duration (ms)Half-sine0.2~300.3~110.3~111~301~301~302~306~30
Post-peak
1~181~183~183~183~186~18
Sawtooth
Trapezoid
6~18
Overall   Dimensions (mm)450×
180×
2100
1000×
900×
2200
1400×
120×
2300
1600×
1400×
2300
1700×
1500×
2300
1700×
1500×
2300
1900×
1500×
2450
2000×
1500×
2450
1900×
1800×
2550
2200×
1800×
2550
Weight   (kg)35055012003000310038004200510071008500
PowerNoneAC220VAC380V±10%,50/60Hz
50/60Hz
Standards  MIL-STD-810F,    IEC68-2-27
