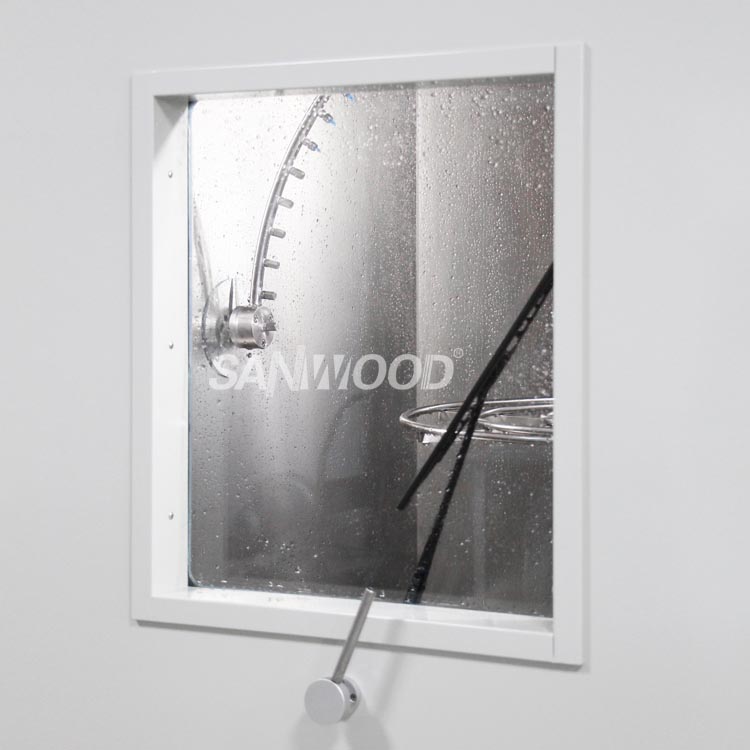

IPX-34 Rain Spray Test Chamber

loading

Share to:
sharethis sharing button
Rain Test Chamber is used to test anti-rain and waterproof performance for products, the products such as .steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion.
Availability:
Quantity:
  • SM-IPX 34-1000

  • Sanwood

  • SM-IPX 34-1000

Product Description

Rain Test Chamber (IPX-3/4) Equipment summary:
Rain Test Chamber is used to test anti-rain and waterproof performance for products, the products such as .steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion.

Rain Test Chamber (IPX-3/4) Corresponding standard:
Rain test chamber IEC60529, JIS D0203, D5500, SAE J585e, CNS 7138.


Rain Test Chamber Application of our rain spray test chamber:
rain test chamber Applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control.


Rain Test Chamber  Technical Reference:


ModelSM-IPX34-1000
Testing room size1000(W)*1000(H)*1000(D)
External size1450(W)*1800(H)*1200(D)
Power2.5(KW)
 Performance index Radius of Water spraying ring 400mm
Water pipe diameter φ18mm
Nozzle hole diameter φ0.4mm
Aperture spacing 50mm
Swing amplitude ±45°、±60°、±90°、±180°(theoretical value)
Rotating speed 1r/min can also be used for speed regulation without joints
Operation Control SystemControllerSANWOOD SH-5500 controller
Time controllerImported programmable time computer integrated controller
Water pressure control Electromagnetic flowmeter
ObservationLarge area visualization toughened glass door
Water supply systemWater tank, booster pump
Power supplyAC380V  TN-S
Safety protectionLeakage, short circuit, motor overheating


Please consult the sales for specific technical parameters, SANWOOD reserves the right of explanation.
