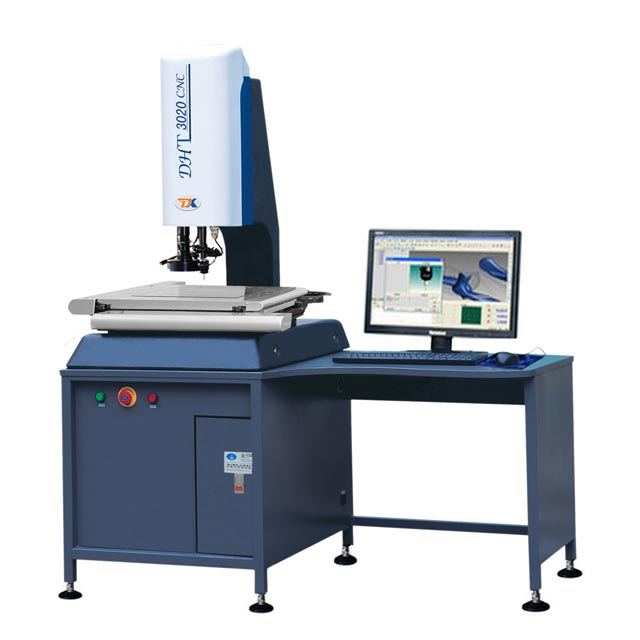

Industrial Imaging Optical Coordinate Measuring Machine with Software


Share to:
sharethis sharing button
It is designed using latest CAD techniques to ensure maximum performance and manufactured from materials best suited to the purpose for guaranteed longevity , drawing on the unparalleled technological expertise of a world leader in metrology.
  • DHT 432CNC

  • AEH

Product Description

Industrial Imaging Optical Coordinate Measuring Machine with software  specification:

Measurement range300×200×200400×300×200500×400×200
External Dimension
Measurement accuracy

Max Load
Marble base + column
OO Class Green
Workbench glassGrinding glass≤2C
Grinding glass≤3C

Grey cast iron natural aging/artificial aging treatment Cros

table and marble table two structures

Grating ruler0.5um import grating (Renishaw grating/RSF grating)
Lighting source

3 ring 8 zone LED ring light source, each segment is independently

 controlled LED parallel bottom light, programmable control

Objective (X)6X Automatic Zoom Lens, Image Magnification 18X - 200X
Optional coaxial lightOptional coaxial light
CCDAmerican Industrial Black/Color CCD
Control SystemCNC closed-loop control system
MotorZ axis adopts silent hybrid motor

XY axis servo motor
Ambient EnvironmentalTemperature 20 °C ± 2 °C, temperature change<2 °C/hr, humidity 30 ~ 80%

Vibration<0.002g, 15Hz
Voltage220V+10%, 50HZ-60HZ
Acceptance methodAcceptance of glass ruler

Equipment discription:

This imaging measuring instrument applies to the second coordinate measurement for the purpose of all applications, machinery, electronics, instrumentation, plastics and other industries widely used.

Main function:

element measurements: multi-point measurement point, line, circle, arc, angle, ellipse, rectangle measuring points provided, automatic identification of point, line, circle, arc.
element structure: the center structure, the intersection of structure, the mid-point structure, line structure, a round structure, the angle structures.

preset elements: point, line, circle, arc.
graphics: coordinate translation, straighten the workpiece.
arbitrary axis straightened, coordinate system reset.
graphic to enlarge, reduce graphics, graphics translation, graphic printing graphic is selected, uncheck, graphics removed.

Set the zoom, graphics narrow, graphic print radio is selected, deselect, graphics removed.
Set the gray scale image, saturation, contrast, image saved as a BMP format.
a variety of edge detection mode, the computer automatically get points, automatic identification circle, arc greatly enhance the speed of mining points.
