Product Description

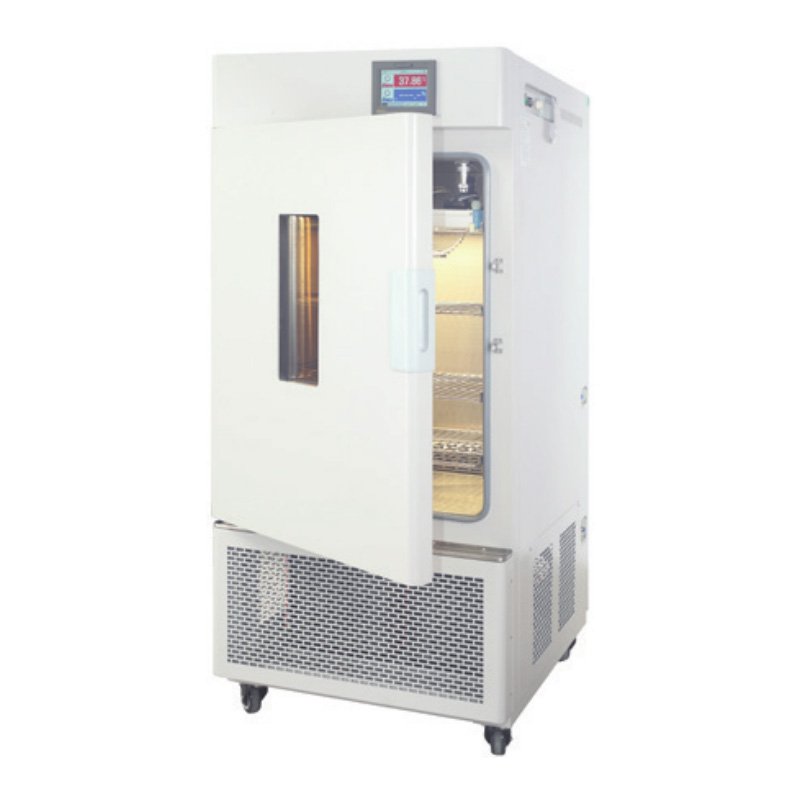

Integrated drug stability test chamber
1. Product name : Integrated drug stability test chamber
2. Integrated drug stability test chamber product model:SM-LHH-80SD、SM-LHH-150SD、SM-LHH-250SD、SM-LHH-80SDP、SM-LHH-150SDP、SM-LHH-250SDP、SM-LHH-150GSD、SM-LHH-150GSP、SM-LHH-250GSD、SM-LHH-250GSP、SM-LHH-150GP、SM-LHH-250GP、SM-LHH-400GP
3. Integrated drug stability test chamber Applications :
The scientific method to create a drug for a long time to failure evaluation of stable temperature, humidity and light environment for pharmaceutical enterprises to accelerate drug test, long-term test, high humidity and strong light test, is the best choice for pharmaceutical companies and drug stability test program.
4.Integrated drug stability test chamber Product features:
humanization design
(1)New fluorine free design, high efficiency, low energy consumption, and promote energy saving, so that you always walk in the forefront of healthy living
(2) Microcomputer controller, stable, accurate and reliable, adopt 304 stainless steel inner container, four corners semicircle arc shape, easy to clean, easy to operate
(3)Unique air circulation ensures that the wind inside the studio is evenly distributed. A test hole with a diameter of 25mm is on the left of the cabinet
Continuous operation guarantee
(1)Two sets of imported compressor automatic switching, to ensure that the drug test running for a long time without failure, break through the domestic drug testing box can not run continuously for a long time defects
(2)Continuous operation without defrosting, avoid in the process of using, because the defrosting temperature and humidity generation box fluctuations.
quality assurance
(1)Temperature and humidity controller, compressor, cycle fan and other key components are imported products, with stable operation for a long time, safe, reliable and so on
safety function
(1)Independent temperature alarm system, can sound light alarm, prompting operators, to ensure the safe operation of the laboratory, without accidents
(2)Low or high temperature and over temperature alarm, high humidity and low alarm
(3)With password lock screen function, to avoid non experimental personnel operation wrongly
(4) imported humidity sensor
(5)Use a humidity sensor operating in a high temperature condition to avoid the trouble of frequent changes of wet and dry bulb and wet belt
UV disinfection system (optional)
(1)The ultraviolet germicidal lamp is arranged in the back wall of the box, and the inner part of the box body can be disinfected regularly, so that the floating bacteria in the circulation air of the tank and the steam of the humidifying dish can be effectively killed, so as to effectively prevent the pollution during the test period of the medicine
Automatic monitoring and control of illuminance (optional)
(1)To overcome the defects of the existing stable test cabinet, which can not be monitored and controlled by light intensity, the light sensor is used for monitoring and stepless adjustment, so as to reduce the attenuation of illuminance and the test error due to the aging of the tube
Data logging and fault diagnosis display
(1) When the test case fails, the dynamic display will have fault information, and the test box operation fault is clear at a glance
(2) It can connect printer or 485 communication interface, record temperature and time curve with computer and printer, and provide strong guarantee for data storage and playback in test process
5.Integrated drug stability test chamber Execution and satisfaction criteria
Pharmacopoeia drug stability test guidelines 2015 edition and gb/t10586-2006 related terms manufacturing
6.Integrated drug stability test chamber Stability test condition
In ICH, in the functional, performance and files, GMP and FDA defined requirements. In Europe, Japan and the United States agreed to develop a common stability test, this test is to collect information, as to make a recommendation of raw material and drug stability, the ultimate goal is within the prescribed period. That drug exposure to temperature, humidity, effective illumination or integrated environment.
7. Integrated drug stability test chamber Storage conditions for stability tests of long-term retention samples
temperature :+25℃±2℃
humidity: 60±5%RH
time: 12monthes
8. Integrated drug stability test chamber Storage conditions for accelerated stability tests
temperature:+40℃±2℃
humidity:75±5%RH
time:6 mothes
Light intensity, illumination condition, illumination intensity:
4500±500LX
9. Integrated drug stability test chamber Technical parameters
Drug stability test cabinet (without light control) | ||||
Model | SM-500SD | SM-800SD | SM-1000SD | SM-1500SD |
Temperature range | 0~65℃ | |||
Temperature fluctuation/uniformity | ±0.5℃/±2℃ | |||
Humidity range/ | 35~95%RH/±3%RH | |||
deviation | ||||
Illumination | None | |||
Refrigeration system | Two sets of original imported full closed compressor automatic switching | |||
Controller | SD series:Programmable liquid crystal controller | |||
SDP series:Programmable touch screen controller | ||||
Sensor | Temperature: PT100 platinum resistance, humidity: capacitive humidity sensor | |||
Operating ambient | RT+5~30℃ | |||
temperature | ||||
Power supply | AC220V 50HZ | AC380V 50HZ | ||
Rated power | 3750W | 7150W | 7150W | 10600W |
Volume | 500L | 800L | 1000L | 1500L |
Inner size(mm) | 670×725×1020 | 800×590×1650 | 1050×590×1650 | 1550×590×1650 |
W×D×H | ||||
Outer size(mm) | 850×1100×1930 | 1360×890×2000 | 1610×890×2000 | 2110×890×2000 |
W×D×H | ||||
Sample rack | 4Pcs | |||
(standard configuration) | ||||
Note | 1. SD、SDP、GSD、GSP series,equipped with embedded printer |
