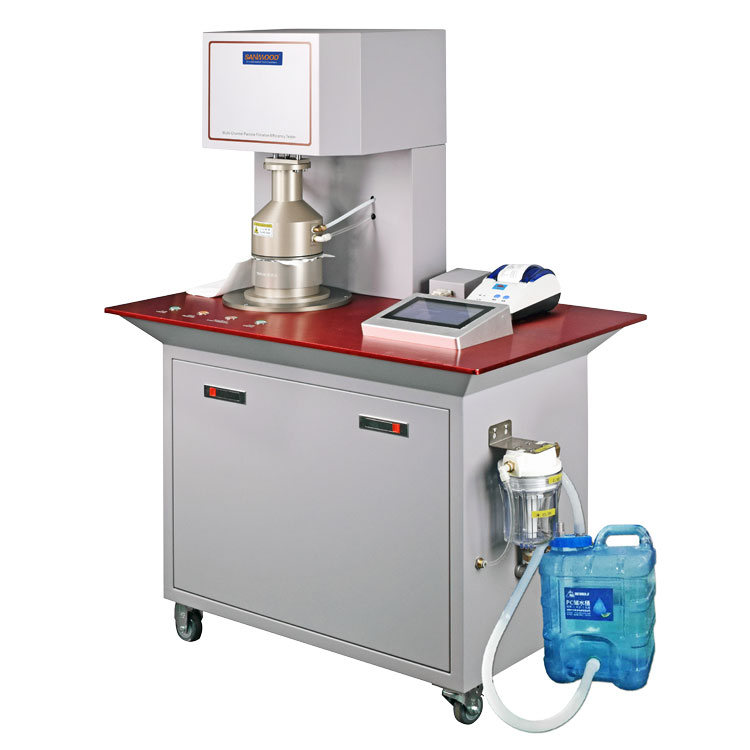

Multi-Channel Particle (Oil) Filtration Efficiency Tester

Multi-Channel Particle Filtration Efficiency Tester

MODEL: SM4315B

Multi-Channel Particle Filtration Efficiency Tester is used to test the filtration level of aerosol particles by respirator filter element under certain environmental conditions.

The aerosol particles (Oil) with a certain concentration and particle size distribution are generated by the aerosol generator, and pass through the tested sample at the specified air flow rate. The concentration of the particles before and after the test sample is tested, and the filtration efficiency of the tested sample to the particles is evaluated by the percentage of the decrease of the particle concentration.

SM4315B tester adopts high-efficiency aerosol generator, high-precision laser multi-channel aerosol particle sensor, precision differential pressure sensor and precision flowmeter. It is controlled by microcomputer to precisely control the air flow and aerosol concentration

By replacing the test head, SM4315B can test the filtration efficiency of masks, respirator and protective clothing, and one machine is multi-purpose.

SM4315B can also test the inhalation resistance of the sample.

Testing Scope:Medical protective mask, Daily protective mask, Disposable respirator, Half mask respirator, Full mask respirator, Protective clothing, Melt blown cloth, etc.

Testing Scope:

Specification：

1. The flow range is 0-100l / min, the accuracy is ± 2%, and the resolution is 0.1L/min;

2. The flow rates cover many worldwide test standards;

3. The pressure detection range is 0Pa ~ 1000Pa, the accuracy is 1%, and the resolution is 0.1Pa;

4. Concentration detection range: (0.001-100) mg / L, 0.001 mg / L (0.001-100mg/m³, 0.001mg/m³) ;

5. Automatic control of aerosol generation;

6. Automatic control of aerosol concentration;

7. Oil aerosol generator;

8. Built in high-precision, multi-channel laser scattering particles (aerosol particle sensor);

9. Particle size measurement range: 0.3 mm - 10.0 mm;

10. Six Chanel (0.3 mm - 10.0 mm) particle filtration efficiency display;

11. Aerosol concentration display;

12. Self-Clean Program built-in;

13. A variety of clamps, suitable for testing masks, respirators and protective clothing, melt blown cloth;

14. Pneumatic clamp;

15. Built-in HEPA filter;

16. Built-in clean air source;

17. Touch screen control, simple operation;

18. Thermal printer, automatic printing of test data.

Order No.:

SM4315B   Multi-channel Particle Filtration Efficiency Tester

SM4315B/1  100cm² Test Head (Standard)

SM4315B/2  Respirator Test Head (Optional)

SM4315B/3  Filter Test Head (Optional)
