Product Description

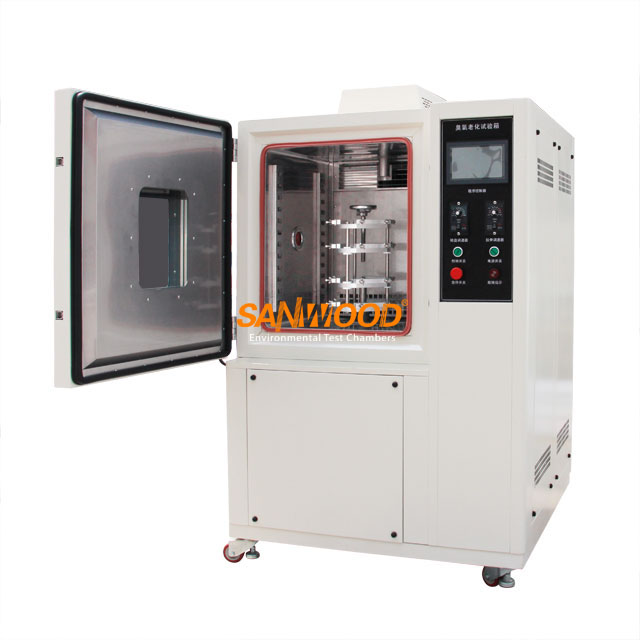

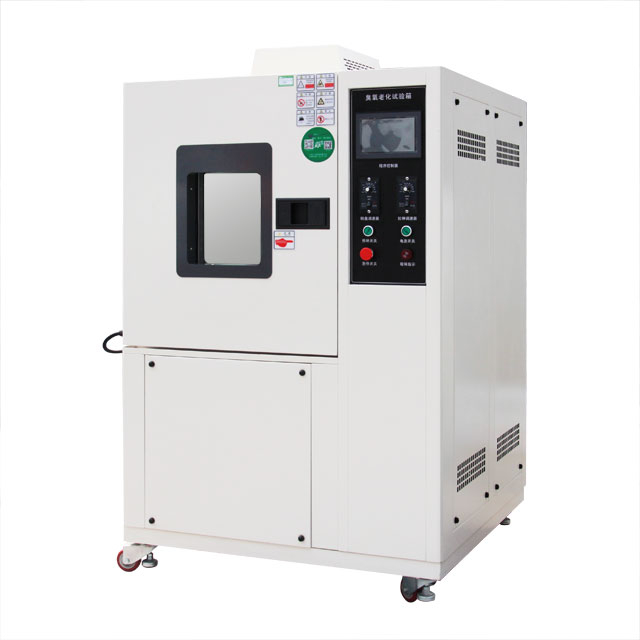

Ozone aging Chamber Instructions:
Ozone aging Chamber is mainly suitable for polymer materials and products (rubber) of the resistance to ozone aging performance test. Ozone content in the atmosphere is very low, but it is the main factors of polymer materials aging. Ozone aging test chamber simulating and strengthen the ozone condition in the atmosphere, get approximate to actual use or reproduction of the test results in a short time. The studay of ozone effect regulation to rubber products, quickly identify and evaluate rubber materials resistance to ozone and antiozonant protection efficiency method,and then take effective aging proof measures to improve the service life of rubber products.
Ozone aging Chamber Corresponding standards:
Ozone Aging Chamber JIS K 6259 , ASTM1149 , ASTM1171, ISO1431, DIN53509 , GB/T13642, GB/T 7762-2003, GB 2951
Ozone aging Chamber Applicable industries:
Ozone aging Chamber is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration, and technical supervision departments and other rubber products.
Ozone aging Chamber Characteristics:
Ozone Test Chamber Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.
Ozone aging Chamber technical Reference:
| Inner chamber size(mm) | 500(W)*600(H)*500(D) |
| Outer chamber size(mm) | 1150(W)*1500(H)*750(D) |
| Temperature range | RT+10~+60℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature deviation | ±2.0℃ |
| Temperature resolution | 0.1℃ |
| Relative humidity | ≤65%RH |
| Humidity resolution | 0.1%R.H |
| Humidity deviation | +2/ -3%RH |
| Ozone concentration | 0~1500pphm (adjustable) |
| Ozone concentration deviation | ≤10% |
| Power | 3~5KW |
| Weight | 250Kg |
Product Catalog:
※Please consult the sales for specific technical parameters, SANWOOD reserves the right of explanation.
