Ozone Test Chamber

Views: 104     Author: Site Editor     Publish Time: 2018-04-12      Origin: Site

Ozone Test Chamber

Model: SM-150-CY

Ozone test chamber produces high concentrations of ozone from ozone generators, can be used for non-metallic materials, and organic materials (coatings, rubber, plastics, paints, pigments, wood, etc.) are subject to aging tests under ozone conditions.

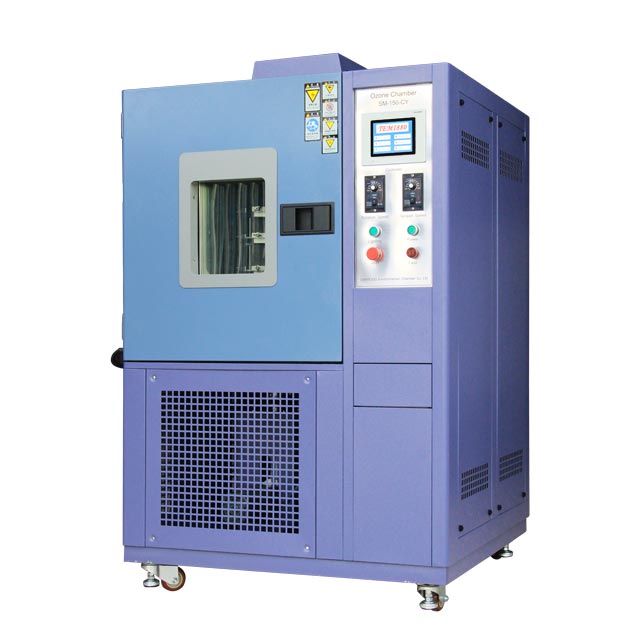

IMG_4895

Structure and material:


Model

Inner dimension

Outer dimension

SM-150CY

500x600x500(WxHxD)mm

1000x1650x1000(WxHxD)mm



     A.External materialSurface electrostatic spraying of SPCC board

     B.Internal materialSUS#304 stainless steel

     C. Insulation material: Hard Polyurethane Foam and Glass Wool

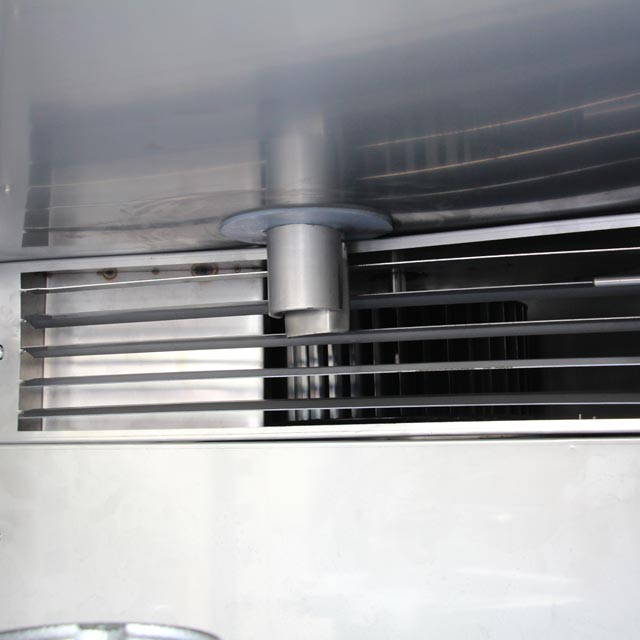

     D.The wind transport system uses a long-axis fan motor and is resistant to high-low temperature aluminum alloy multi-blade wind turbines to achieve forced convection vertical diffusion cycles. The door is sealed with a double layer of high and low temperature resistant silicone rubber to ensure that the test area is sealed

     E.The bottom of the machine is made of high quality universal movable wheel and fixed foot cup

     F.The observation window adopts multi-layer hollow tempered glass, and the inner sheet type conductive film

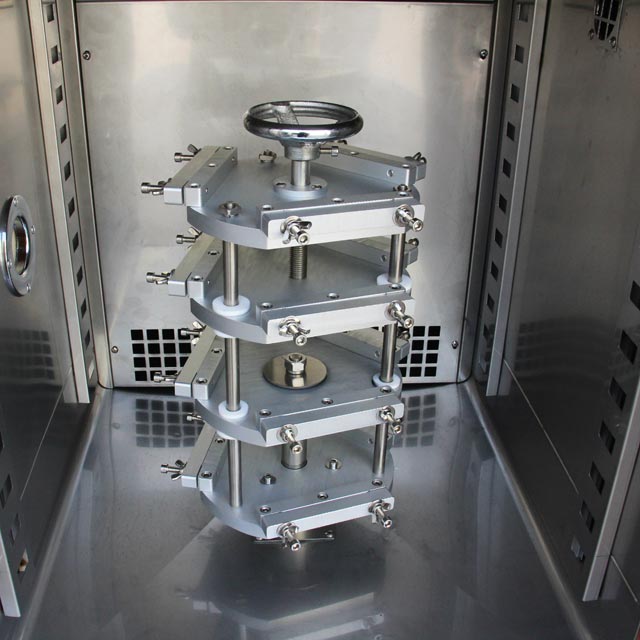

     G. Aluminum alloy sample fixture

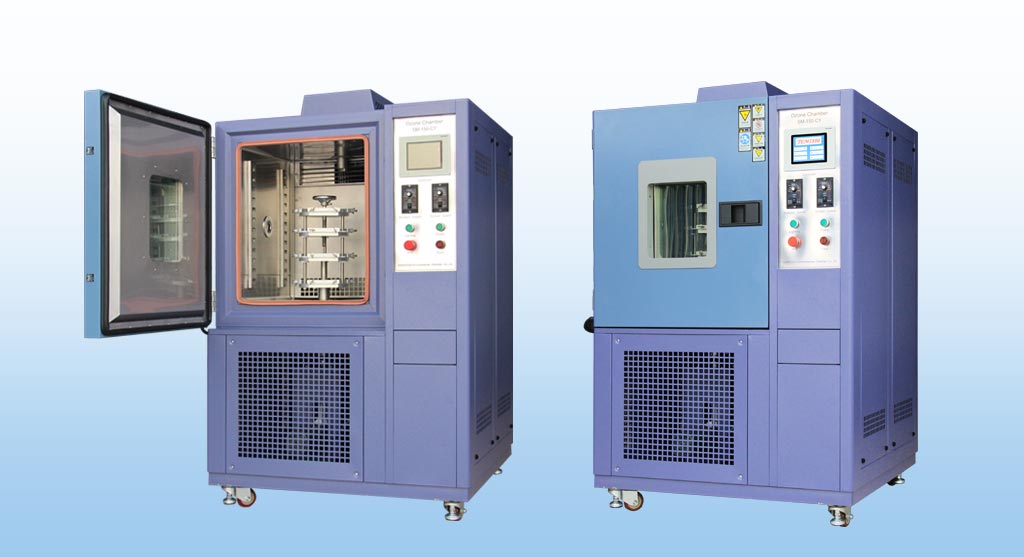

臭氧 (2)

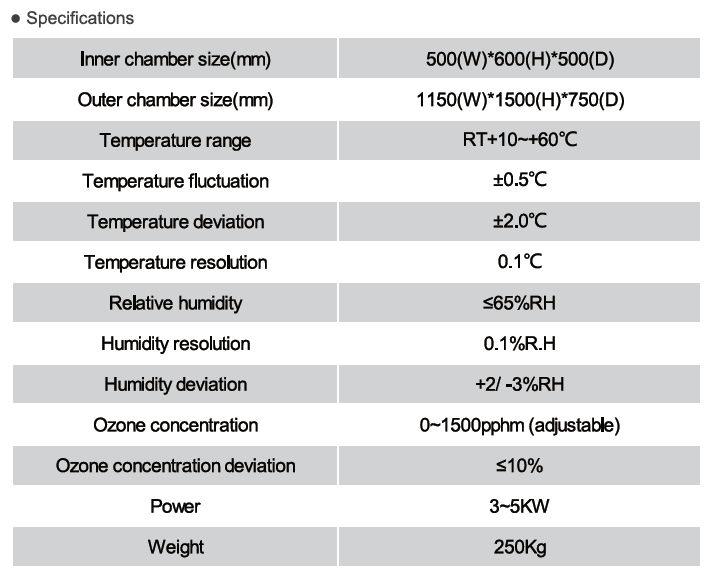

臭氧图片

Controller specification:

     A.The operation display interface in English and Chinese can display the setting test parameters, running time, heater and refrigeration compressor. At the same time, it has the function of automatic test operation and PID parameter self-tuning.

      B.The control parameters are set by man-machine dialogue, and the automatic operation function of the test box can be realized only by setting the temperature.

      C.The control system uses intelligent control software system with automatic combined refrigeration, heating and other operating conditions, so as to ensure the high precision control in the whole temperature range, and achieve the purpose of saving energy and reducing consumption.


Details:

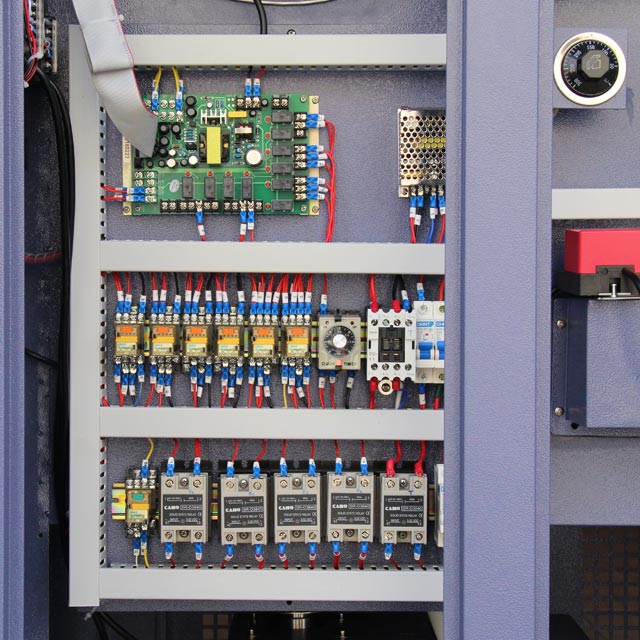

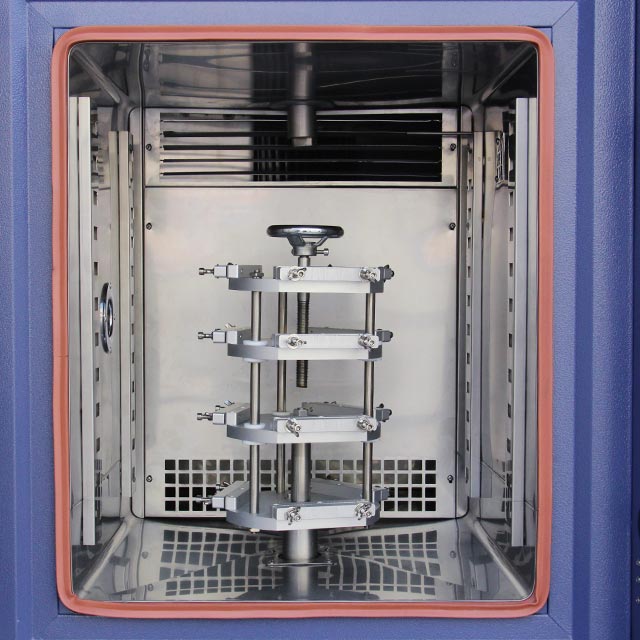

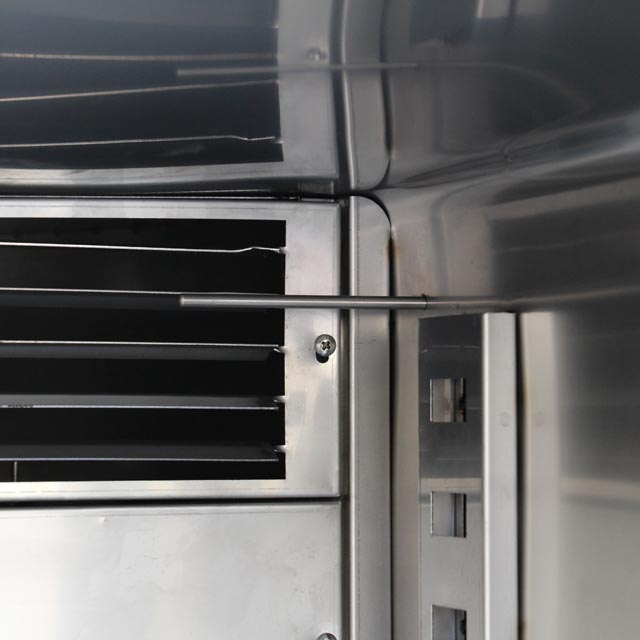

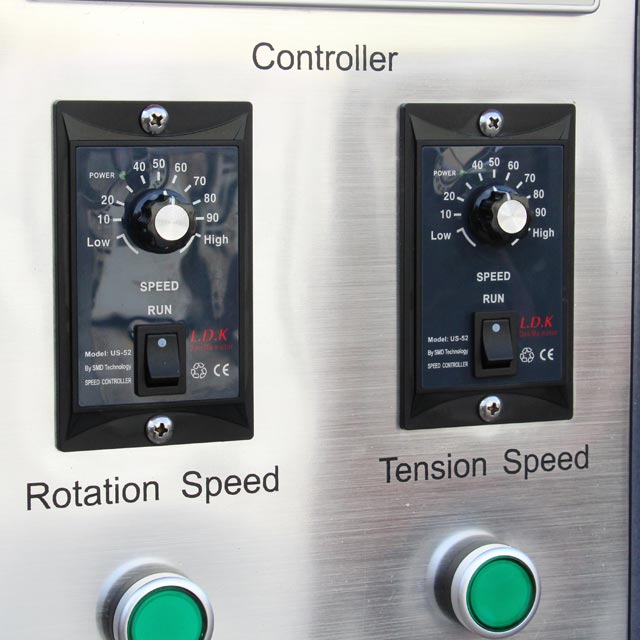

IMG_4898  IMG_4902  IMG_4901IMG_4910  IMG_4906  IMG_4905


If you are interested in this produces, please kindly contact us.


Guangdong Sanwood Technology Corporation.,limited

ADD: No.88, Songchang Road, Songbotang, Changping, Dongguan, Guangdong

TEL: +86+769-81182799

FAX: +86+769-82987199

E-mail: info@climatic-chambers.com.tw

Website: http://www.sanwood.cc
