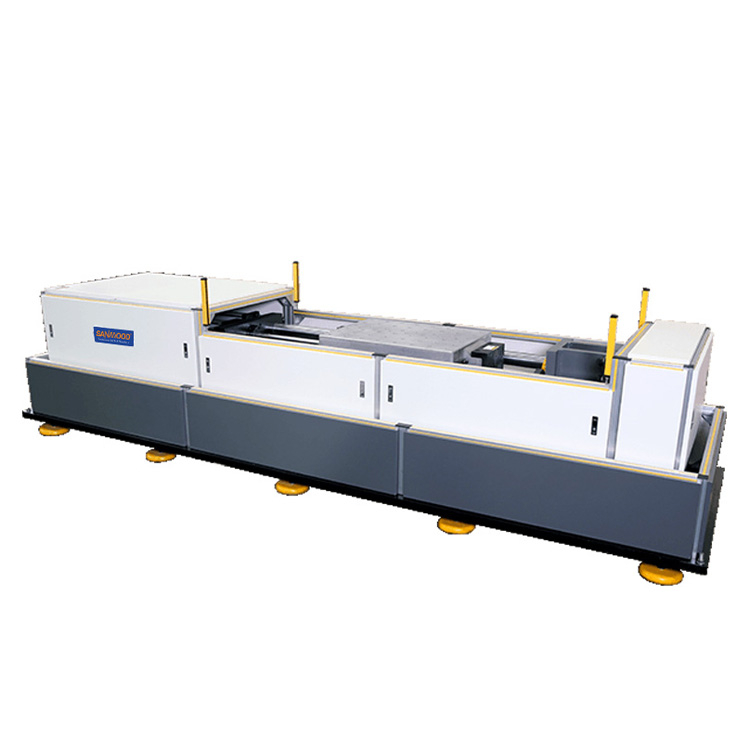

Pneumatic Horizontal Shock Test System

loading

Share to:
sharethis sharing button
SM03 Pneumatic Horizontal Shock Test System is used to measure and determine the horizontal impact resistance of a product or package, and to evaluate the reliability and structural integrity of the test unit in a horizontal impact environment. The system can perform conventional half-sine wave, post-peak sawtooth wave, or square wave shock test to realize the shock energy that the product is subjected to in the actual environment, thereby improving the product or packaging structure.
Availability:
Quantity:

Product Description

Pneumatic Horizontal Shock Test System is used to measure and determine the horizontal impact resistance of a product or package, and to evaluate the reliability and structural integrity of the test unit in a horizontal impact environment. The system can perform conventional half-sine wave, post-peak sawtooth wave, or square wave shock test to realize the shock energy that the product is subjected to in the actual environment, thereby improving the product or packaging structure.


Features:

  • Windows-based stable control system, full-automatic remote-control interface



  • Pneumatic cylinder driving with advantages of large driving force, short accelerating stroke, low cost and pollution free.



  • Trapezoidal guide posts: large supporting force, good lubricity and full-automatic positioning table.



  • Automatic control of shock speed: the shock overload value is achieved by adjusting the air pressure. After the cylinder pressure is set, system will automatically control the shock speed with high accuracy and good repeatability.



  • Adopts the high strength and hardness cast aluminum table, which has high first-order resonance frequency, featured with low noise and no clutter



  • The most reliable double-brake system: effectively avoids secondary rebound collisions, more securely positioning the table, and more reliably guarantees the safety of the operator.


  • Multiple waveforms: can perform conventional half-sine waves, post-peak sawtooth waves, or square waves.



  • Easy installation: the device comes with a base, due to short driving stroke of the pneumatic cylinder, the footprint is small.


  • Integrated control & measurement system: the system comes with a variety of waveform tolerance bands that comply with the MIL-810 standard, automatically generates test reports after the test is completed.


  • System scalability: the system can be designed as a bidirectional shock according to user needs, saving test time more effectively.


Technical Specifications


   ModelSM03-50SM03-100SM03-200SM03-500SM03-1000SM03-3000
Parameters
Rated Load (kg)5010020050010003000
Table Size (mm)500×500600×600800×800900×9001000×10001500×1500

Half-Sine10~1k10~1k10~80010~60015~40015~300
Peak Acc. (G)Post-Peak10~20010~10010~50

Sawtooth

Trapeziod15~10015~10015~50
Pulse Duration (ms)Half-Sine1~401~402~403~406~60
Post-Peak3~186~166~18
Sawtooth
Trapeziod6~186~166~12
Overall Dimension3700×1200×8504000×1200×8504300×1440×8504400×1540×8504500×1640×8505000×2150×1850
(mm)
Weight (kg)150018002500300035005500
Power SupplyAC380V±10%, 50/60Hz
StandardMIL-STD-810F       IEC68-2-27
