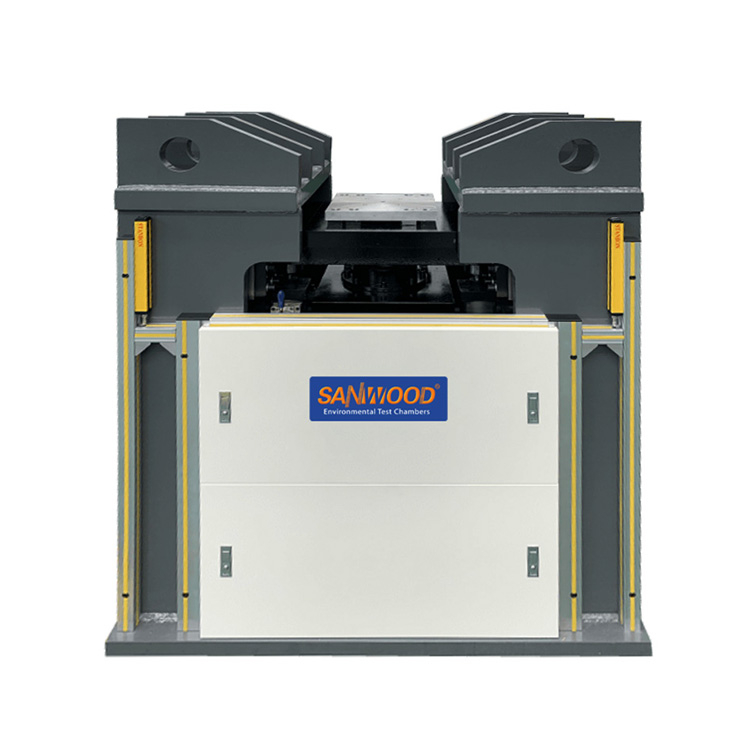

Pneumatic Vertical Shock Response Spectrum Test System

loading

Share to:
sharethis sharing button
Pneumatic Vertical Shock Response Spectrum Test System is used to measure and determine the shock resistance of electrical and electronic products or packaging, and to evaluate the reliability and structural integrity of the test product in a shock environment. The shock response spectrum is the total result of a series of single-degree-of-freedom linear systems with different natural frequencies subjected to the same shock excitation response.
Availability:
Quantity:

Product Description

Pneumatic Vertical Shock Response Spectrum Test System is used to measure and determine the shock resistance of electrical and electronic products or packaging, and to evaluate the reliability and structural integrity of the test product in a shock environment. The shock response spectrum is the total result of a series of single-degree-of-freedom linear systems with different natural frequencies subjected to the same shock excitation response.


 When a product is subjected to an impact, the maximum value of its impact response means that the product has a maximum stress. Therefore, the shock response spectrum tester can better simulate the shock wave and shock energy suffered in the real environment.


Features:


  • 1200mm table size withstand 1000kg load.



  • Windows-based stable control system, full-automatic remote-control interface.



  • The control & measurement system has built-in SRS specifications and tolerances, which is convenient for users to adjust and apply. It automatically completes the test and generates reports.



  • Adjust the driving shock energy by adjusting the air pressure, which is convenient to operate and high in efficiency.



  • The equipment takes up a small area and is easy to install.


Technical Specifications


Model
Parameters
SM07-50SM07-100SM07-200SM07-500SM07-1000
Load (kg)501002005001000
Table size(mm)500×500600×600800×8001000×10001200×1200
Response Frequency
Range (Hz)
10~10000
Max. Response
Acceleration (g)
60005000300020001000
Gradient of Rising Stage (dB/Otc)6~9
Tolerance Range
 (dB)
±6~9
Overall Dimension
(mm)
1500×1200×15001800×1300×16002000×1500×17002200×1600×18002500×1800×2000
Power for TableAC220V ± 10%,50Hz,  3kVA
Power for Air
Compressor
AC220V±10%,   50Hz, 3kVA / AC380V±10%, 50Hz, 5kVA;  output pressure≤1MPa
Weight (kg)25003000360040005000
Working EnvironmentTemperature range 0 ~ 40℃;   Humidity ≤ 80% (25℃), non-condense
