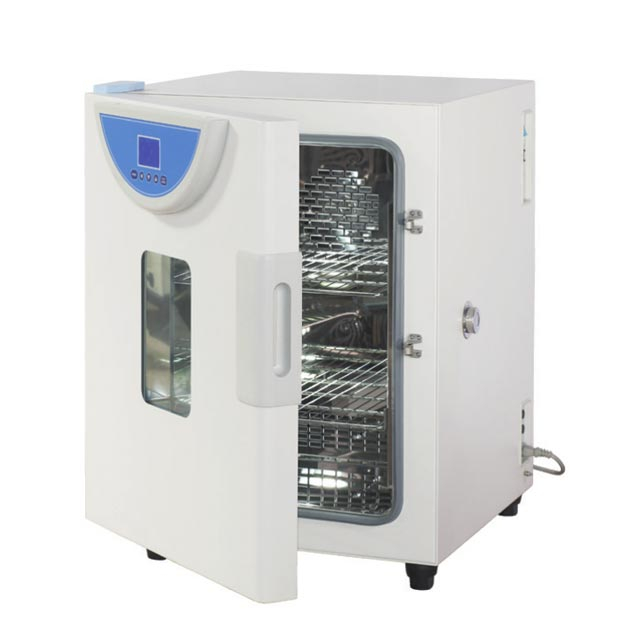

Precise thermostatic incubator- Multi-segments Programmable LCD Controller

Share to:

With the over ten years experiences and follow the world’s environmental protection trend, our new generation incubator wins the leading position. Providing the high quality and satisfactory products with humanized design to the global clients.

Quantity:
  • SM-BPH-9042/SM-BPH-9082/SM-BPH-9162/SM-BPH-9272/SM-BPH-9402
  • Sanwood

Product Description


Product features:

◆Humanized design

 LCD screen , data focus, Menu operation interface, simplify the complicated experimental process, truly put automatic control into effect.

● Mirror finished stainless steel liner, semicircle design(Four corners), easy cleaning, rack adjustable.

 Unique air duct system, keep the temperature and humidity even. one Φ25mm testing hole on the right side, convenient for the operation and temperature measurement.


Quality guarantee

● PID controller, accuracy temperature control, timing setting;

● Multi-segments Programmable controller, simplify the complicated experimental process, truly put automatic control into effect(Standard).


◆Automatic control of circulating fan speed, avoiding the volatilization of samples effectively.

◆Self-diagnostic function

● LCD screen will display the error information when the device breaking down.


Convenient Data processing(Optional choice)

● Printer or RS485 port inside; Temperature recording(Optional choice).


Safety function

● Independent temperature warning system; sound-light alarm(optional choice).

● Too high/too low and over temperature also trigger the alarm.


◆Multi-segments Programmable controller

● Multi-segments Programmable controller, data focus, Menu operation interface, simplify the complicated experimental process, truly put automatic control into effect(optional choice).

● Multi-segments temperature, circulation velocity, timing and heating rate can be set and programmed together. Gradient Acceleration Control, automatic start-up and shut down function.

● 30 programs, 2 steps per program can be preset, Timing setting from 1~9999 min.


◆UV sterilization system.(Optional choice)

 The UV sterilization system disinfect virus and prevent the incubator from being pollution.


Technical parameters


ModelSM-9042SM-9082SM-9162SM-9272SM-9402
Power supplyAC220V 50HZ
Temperature control rangeRT+5~80℃
Temperature fluctuation0.1℃/±0.2℃
Temperature uniformity±1.5℃(Test Temperature is 37℃)
Operating ambient temperature+5~35℃
Input Power250W250W500W600W1200W
Liner Dimension
(W×D×H mm)
350×300×400400×320×550500×380×750600×450×9001000×510×800
Outside
Dimension
(W×D×H mm)
505×635×600550×660×750655×715×980755×785×11301140×850×1080
Loading   Bracket(Standard)2 pcs


Under the idle condition ,Performance Parameters tested like this:

Environment temperature is 20, environment humidity is 50% RH


Optional accessories(when picking this option, delivery need to be added 7 days)

  1. Embedded printer;

  2. Independent temperature limited controller;

  3. RS485/232 connector and communication software;

  4. UV sterilization system;

  5. USB disk data storage;

Remarks: Pick USB disk/RS485(232)/Printer one-out-three.
