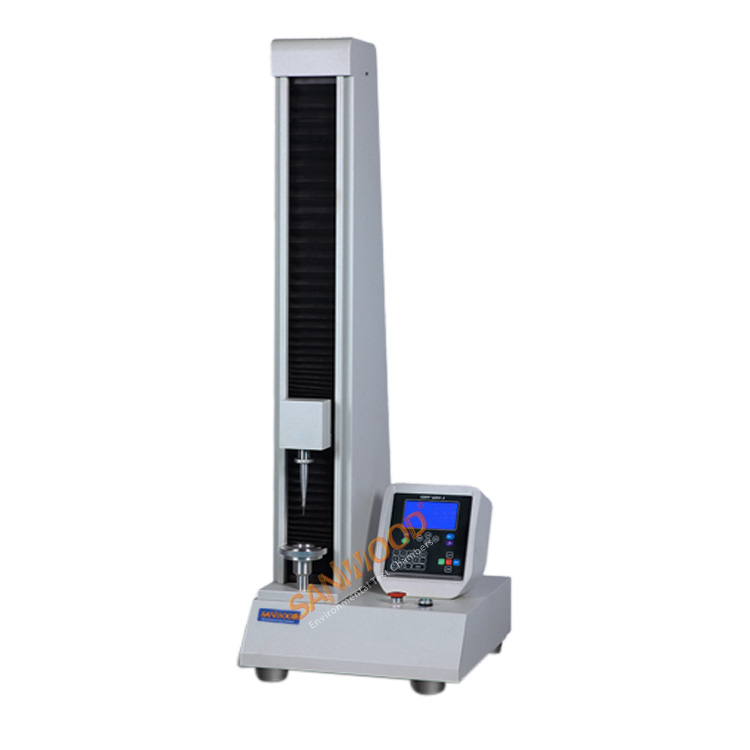

Touch Screen Single Column Tensile Tester

Share to:

Touch Screen Single Column Tensile Tester Suitable for plastic film, composite film, adhesive, adhesive tape,medical patch,protective film,release paper,rubber,artificial leather,paper fiber and other products' tensile strength,peel strength,deformation rate,breaking force,peel force,Opening force performance test.

Quantity:
  • SANWOOD

Product Description

Touch Screen Single Column Tensile Tester



Application :

Suitable for plastic film, composite film, adhesive, adhesive tape,medical patch,protective film,release paper,rubber,artificial leather,paper fiber and other products' tensile strength,peel strength,deformation rate,breaking force,peel force,Opening force performance test.



Application area :

Adhesive tapes,automobiles,ceramics,composite materials,construction,food and medical equipment,metals,paper,packaging,rubber,textiles,wood,communications and various shaped materials.



Technical parameter :

Model:SM-KZ-LL1

Capacity: 100KG

Measuring accuracy:±1 %

Resolution:1/200000

Test speed:0~300 mm/min

Effective stroke:600 mm

Test space:120 mm

Force Unit:kgf、gf、N、kN、lbf

Stress Unit:MPa、kPa、kgf/cm2、lbf/in2

Stop mode: upper and lower limit safety settings, test piece breakpoint sensing result output: micro printer

Power: adjustable speed motor

Optional: tension clamp (conventional) machine weight: about 40 kg

Power:1PH、AC220V、50/60Hz


Touch Screen Single Column Tensile Tester
