Two Zone Thermal Shock Chamber

Share to:

Sanwood have 13 process and 5 times quality control to ensure the accurate control of all details for the Two Zone Thermal Shock Chamber,Two Zone Thermal Shock Test Chamber,Thermal Shock Test Chamber,Thermal Shock Chamber,Three Zone Thermal Shock Test Chamber
Electronic expansion valve for throttle device
Active control of the refrigeration system is achieved, and the fixed proportional adjustment of the original thermal expansion valve is not controllable. Adjust and optimize the output for different modes and conditions
The electronic control valve's cycle control feedback front end is a temperature-pressure double-sensor high-response direct control that provides optimum evaporator supply, enabling the refrigeration system to achieve excellent cooling capacity output over a wider operating range.
Energy-saving: The full range of self-adjustment of the electronic expansion valve + active adaptation to adjust the cooling capacity output, making the system more energy efficient.

Quantity:
  • SM-500-2P-A
  • Sanwood
  • SM-500-2P-A

Product Description


Two Zone Thermal Shock Chamber Briefly introduction:
High and low temperature (two cases) thermal shock test chamber system structure can be divided into two parts. Namely, high temperature tank (preheating zone), cryogenic tank (pre-cooling zone).

Two Zone Thermal Shock Chamber Testing principle
Two Zone Thermal Shock Test Chamber Testing principle mainly through controlling the portable basket (test samples District) to quickly move between cryogenic tank and high temperature tank to achieve rapid thermal shock test. The whole testing process test samples along with mobile gondola to move together. The test chaber is suitable for the examination of the whole set of products, components, parts and materials subjected to rapid changes in temperature. The temperature impact test chamber are used in a shortest time to evaluate the test samples due to thermal expansion and contraction caused by the changes of chemical or physical damage.

The advantages of SANWOOD Two Zone Thermal Shock Test Chamber(500L)
1.Thermal Shock Test Chamber Temperature and humidity setting protection
2.Two zone thermal shock test chamber. Air pressure driven test area(sample)
3.Error failure medical record table cartilage device
4.HFC environmentally friendly refrigerant, SWEP plate heat exchanger, two type refrigeration system
5.Optimal structure and high efficiency refrigeration machinery design
6.Air intakes and returns with sensor control
7.Sever Valve, Kinetic energy automatic load control
8.Thermal Shock Chamber Testing range: 150(60)℃~ (-10)-65℃
9.50% power saving efficiency and automatic servo control
10.Compatible with BUS CM remote monitoring management system
11.Can expanded: LN2V liquid nitrogen rapid cooling control device
12.Thermal shock test chamber movement time is 10 seconds.Can meet MIL, IEC and JIS standard.
13.Wind valve switching time is 10 seconds
14. Thermal shock test chamber temperature recovery time is 5 minutes, can meet the test specification
15.The end of the experiment, the product automatically return to the normal temperature to avoid frost dew
16.The world's first built-in USB2.0 interface digital recorder (recording can be plugged in at any time)
17.Industrial grade upright full-color touch multilingual programmable control system
18.The world's first standard shipping included USB2.0 and disk storage machine dual interface
19.The protective mechanism of return to normal temperature after the test is finished.
20.The world's first complete test curve analysis shows that there is no time limit.



Two Zone Thermal Shock Chamber Specification:

Two-Zone-Thermal-ShockTest-Chamber-1

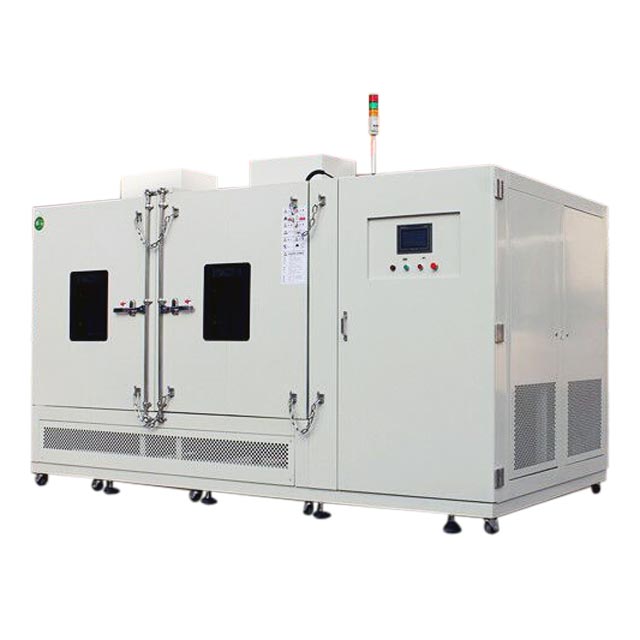

Two-Zone-Thermal-Shock-Chamber


Product Catalog:

Two Zone Thermal Shock Chamber -500L.pdf

Please consult the sales for specific technical parameters, SANWOOD reserves the right of explanation.
