This product is no longer available

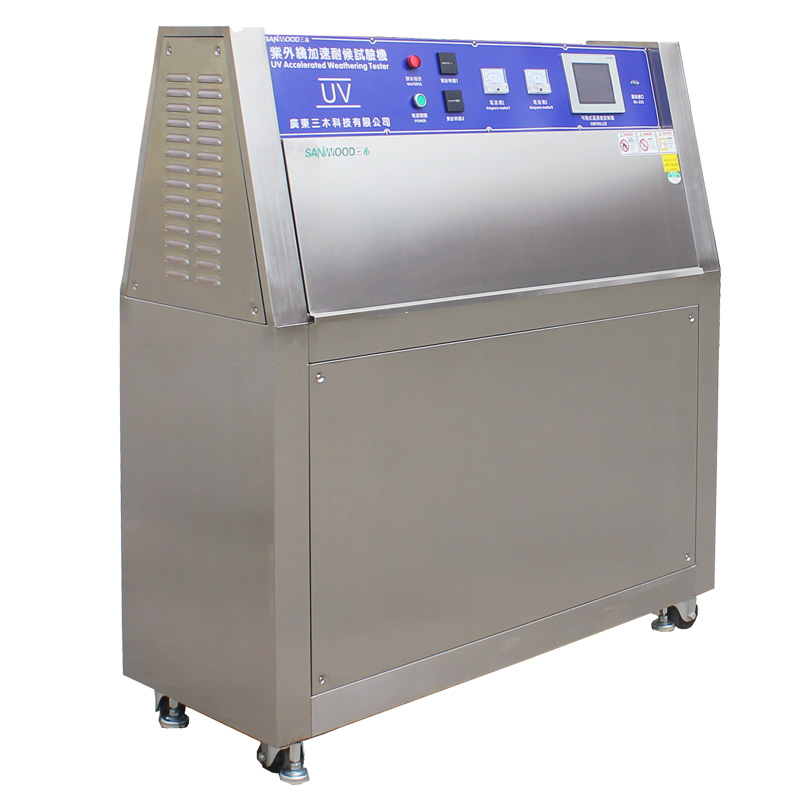

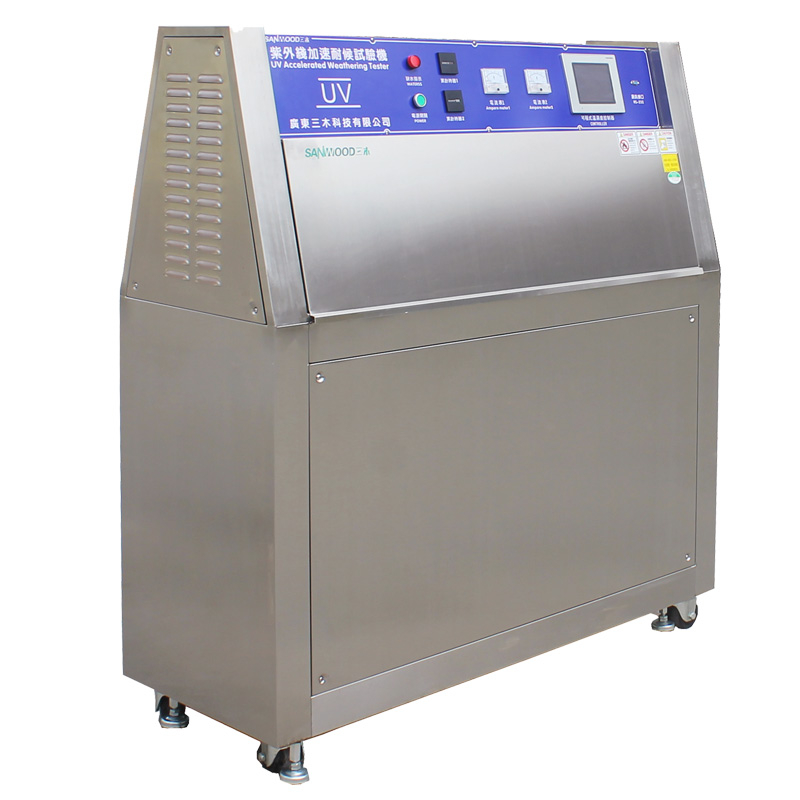

UV Aging Test Chamber

loading

Share to:
sharethis sharing button
Sanwood , a 23 years of professional UV Aging Test Chamber,UV accelerated aging test chamber,UV Light Accelerated Aging Test Chamber,UV Test Chamber,BINDER UV aging test chamber manufacturers
UV aging test chamber is the world's most widely used ultraviolet aging test equipment , in the paint, ink, plastic, electronics industry has a wide range of applications.
Availability:
  • SM-UV600-C

  • Sanwood

  • SM-UV600-C

Product Description

UV Aging Test Chamber application


             UV aging test chamber is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.


UV Aging Test Chamber standard



            ISO 4892-1 Plastic-Methods of exposure to laboratory light sources
            ASTM G-151 Standard Test Method for non metallic materials exposed to accelerated test equipment using laboratory light sources
            ASTM G-154 Test Mothods for non-metallic materials exposed to the UV fluorescence device
            British Standard BS 2781:Part5  Test Mothods 540B (Methods of exposure to laboratory light sources)
            SAE J2020 Using fluorescent UV / condensation equipment for automotive exposure test
            JIS D 0205  Burn-in test method of auto parts(Japan)


UV Aging Test Chamber Technical Reference:


Model SM-UV600-C
Temperature Temperature control range 30.0℃~70.0℃
Temperature fluctuation ±1.0℃
Temperature uniformity ±2.0℃
Humidity  Humidity control range 90.0%RH~98.0%RH(Temperature range:30.0℃~70.0℃)
Humidity fluctuation ±1.0% RH
Humidity uniformity ±3.0%RH
Lighting Lamp type  UV-A、UV-B
Wavelength UV-A(280~315nm)40±10%W/㎡、UV-B:(315~400nm)40±10%W/㎡
Lamp quantity 8Pcs
Distance between tubes center 70±2mm
Distance between tubes center
 and testing samples
50±2mm
Lamp lifespan 1200H
Nozzle quantity 12Pcs
Sample size W450*H260±2mm
Material /
Components
Internal material Stainless steel(SUS304)
External material Stainless steel(SUS304)
 Heat insulating material 50mm thickness mineral wool
Fan  Axial flow fan
Humidifier Steam humidifier
Size Inner size(mm) W*H*D 1170*500*450
Outer size(mm) W*H*D 1300*1550*650
Operating ambient temperature +5 ~ 35℃
Power supply 220V AC  50/60Hz
Controller South korea SAMWONTECH TEMI880 5.7 inch controller, equipped with RS232 port


Product Catalog:

UV Lamp Weathering Test Chamber-600 .pdf

Please consult the sales for specific technical parameters, SANWOOD reserves the right of explanation.
