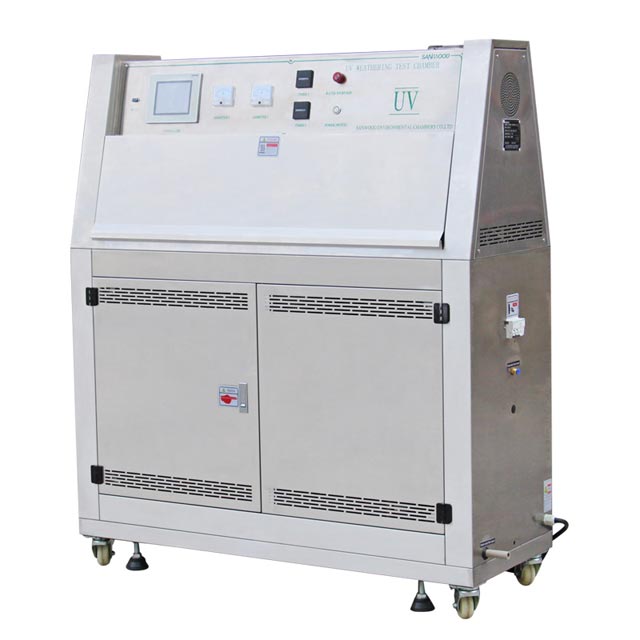

UV Weathering Test Chamber

Share to:

Sanwood UV Weathering Test Chamber,UV aging chamber,UV test chamber,UV accelerated aging test chamber,UV Light Accelerated Aging Test Chamber is exported to Russia, Europe, USA, Canada and so on.
UV aging test chamber is the world's most widely used ultraviolet aging test equipment , in the paint, ink, plastic, electronics industry has a wide range of applications.

Availability:

Product Description

Product Description

UV Weathering Test Chamber application

UV Weathering Test Chamber is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.

UV Weathering Test Chamber standard

ISO 4892-1 Plastic-Methods of exposure to laboratory light sources

ASTM G-151 Standard Test Method for non metallic materials exposed to accelerated test equipment using laboratory light sources

ASTM G-154 Test Mothods for non-metallic materials exposed to the UV fluorescence device

British Standard BS 2781:Part5 Test Mothods 540B (Methods of exposure to laboratory light sources)

SAE J2020 Using fluorescent UV / condensation equipment for automotive exposure test

JIS D 0205 Burn-in test method of auto parts(Japan)

UV Weathering Test Chamber Technical Reference:

Model		SM-UV600-C
Temperature	Temperature control range	30.0℃～70.0℃
	Temperature fluctuation	±1.0℃
	Temperature uniformity	±2.0℃
Humidity	Humidity control range	90.0%RH～98.0%RH(Temperature range：30.0℃～70.0℃）
	Humidity fluctuation	±1.0% RH
	Humidity uniformity	±3.0％RH

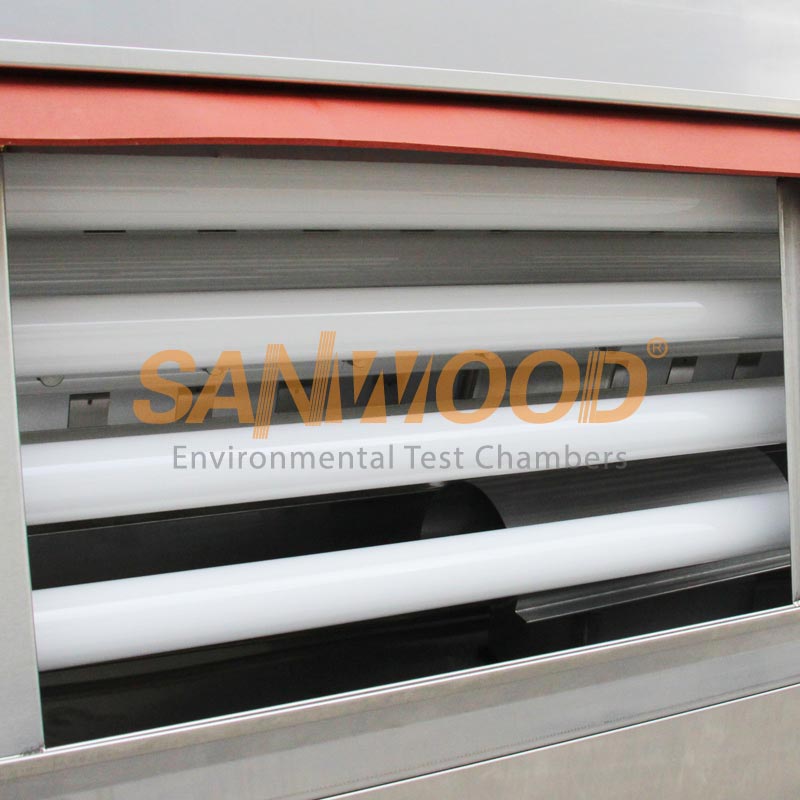

Lighting	Lamp type	UV-A、UV-B
	Wavelength	UV-A（280～315nm）40±10%W/㎡、UV-B:（315～400nm）40±10%W/㎡
	Lamp quantity	8Pcs
	Distance between tubes center	70±2mm
	Distance between tubes center and testing samples	50±2mm
	Lamp lifespan	1200H

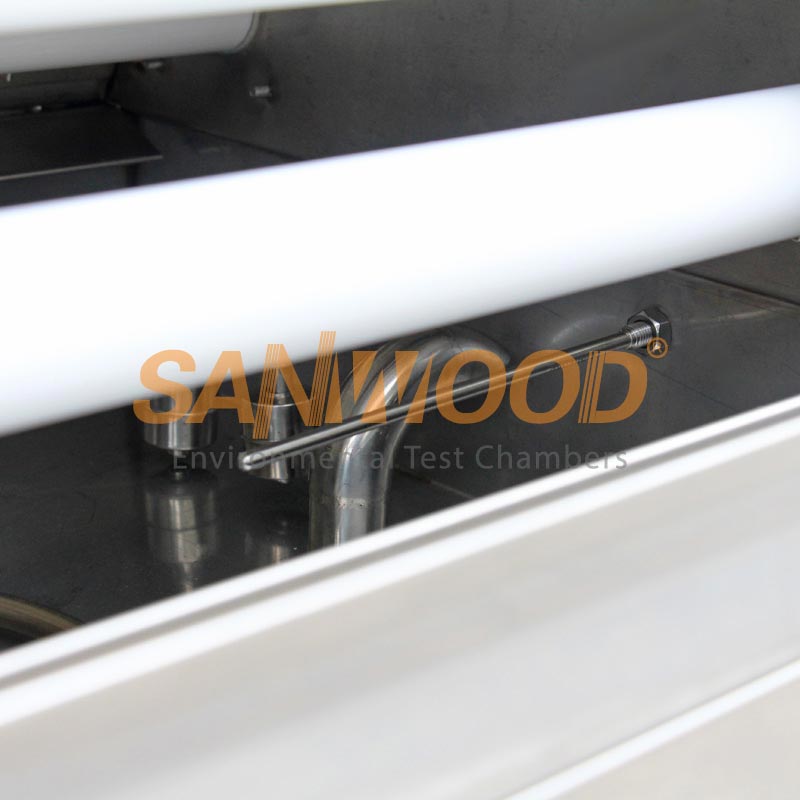

	Nozzle quantity	12Pcs
	Sample size	W450*H260±2mm
Material / Components	Internal material	Stainless steel(SUS304)
	External material	Stainless steel(SUS304)
	Heat insulating material	50mm thickness mineral wool
	Fan	Axial flow fan
	Humidifier	Steam humidifier
Size	Inner size(mm) WHD	1170500450
	Outer size(mm) WHD	13001550650
Operating ambient temperature		+5 ~ 35℃
Power supply		220V AC 50/60Hz
Controller		South korea SAMWONTECH TEMI880 5.7 inch controller, equipped with RS232 port
