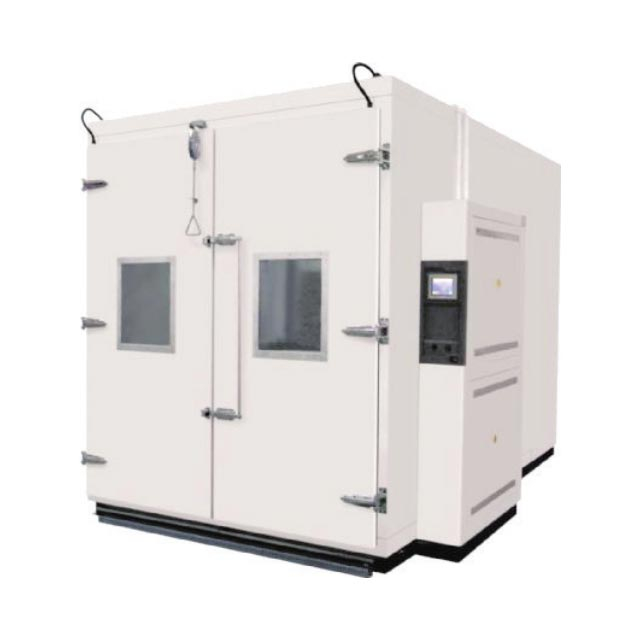

Walk-in Drug stability test chamber

loading

Share to:
sharethis sharing button
Walk-in Drug stability test chamber,Walk-in Drug stability chamber,Walk in Drug stability test chamber,Walking in Drug stability test chamber,Drug stability test chamber
Create the best choice for testing the drugs in a stable temperature, humidity and lighting condition of long time operation. Convenient for the pharmaceutical enterprise to do research and development.
Availability:
Quantity:
  • LHH-series

  • Sanwood

  • LHH-series

Product Description

Walk-in Drug stability test chamber Product features:

● Imported color touch screen, language switch, 100 programs for setting, data display.

● Apply TMHM temperature and humidity adjusted method, running stable, accuracy control.

● Special air circulatory system, ensure the temperature and humidity even inside.

● Sophisticated security protection system.

● Data record and error detect. Printer or RS485 communication connector for use. Temperature and humidity time curve real-time recording.

● Anti-lock system, can walk in and out freely.


Walk-in Drug stability test chamber Execution and satisfying criteria:

Supported by the 2015 Pharmacopoeia drug stability test guidelines and GB/T10586-2006 relevant terms.


Walk-in Drug stability test chamber EU safety certificate:

EN55014-1:2006EN-2:1997+A12001

EN60335-1:2002+A2:2004+A11:2004+A12:2006

EN60335-2-71:2003EN61000-3-2:2006



Walk-in Drug stability test chamber Technical parameters:


ModelLHH-series
Inner volume2m³~250m³(can be customized)
PerformanceSystemBalanced temperature and humidity control
Temperature    control range0~65℃
Humidity    control range40~95%RH
    (20%RH is possible when apply
the dehydrating unit)
Temperature   fluctuation±0.5℃


Temperature deviation≤±2.0℃
Humidity deviation±3.0%RH
Heating up time1~2℃/min
Cooling time0.5~1℃/min
Refrigerating methodDual compressor
Control   system

Temperature   and humidity controllerColor LCD touch screen


Operation menuLCD display


Operation modeSV, PV


DistinguishabilityTemperature: ±0.1℃; Humidity: ±1%RH


InputTemperature: PT100; Humidity:
 Capacitive sensor


Control methodPID control


Communication method RS-485、RS-232C
Operation ambient temperature+5~+35℃
Power supplyAC380 50HZ three-phase five-wire system


Remarks: Illumination board and illumination controller (Optional choice)

Provide 3Q verification and calibration services(Optional choice):

Provide the authority third party testing report in shanghai.(Optional choice)



Walk-in Drug stability test chamber Optional accessories:

1.   Wire alarm system;

2.    Illumination automatically detect and control;

3.    Wireless alarm system(SMS alarm system);

4.    UV sterilization system;

5.    Paperless recorder;

6.    SDR100 imported paperless recorder
