SM- Q-SUN
Sanwood
SM- Q-SUN
Product Description

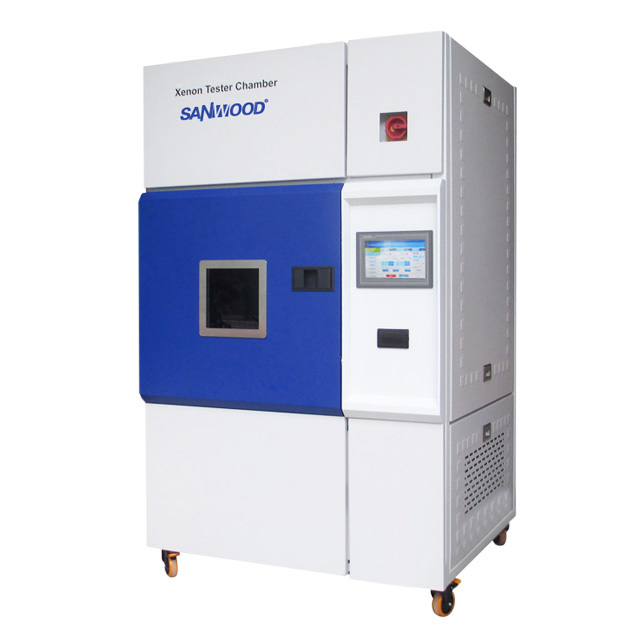

Xenon lamp test chamber Powerful functions and reliable test results
◆ Xenon lamp weathering test chamber Meet with all international standards of xenon test.
◆ Xenon Lamp Weathering chamber Equipped with ATLAS xenon arc lamp , filter and components, ensure to get high and same running parameters. Test results have a good reliability and repeatability comparing with import machines.
◆ Automatic rotating drum-type sample rack with three floors structuremaximizes exposure uniformity over all specimens
◆ 6,500cm exposure area , can hold different shapes and sizes samples.
◆ Can set the cumulative energy (total irradiance energy)obtained by sample to finish a test procedure.
◆ Advanced cooling system for xenon lamp and intelligent air system.
◆ Chinese or English operation window
Xenon lamp weathering test chamber Can set andcontrol automatically many test parameters
◆Xenon Lamp Chamber Irradiance energy can be set and accurately controlled(340nm or 420nm or 300nm~400nm). The "Solar Eye" control system can monitor and automatically compensate the change of light intensity caused by ageing or other factors.
◆ Working room temperature, BPT(black panel temperature)and BST(black standard temperature)can be set and controlled automatically. With high precision Pt 100 temperature sensor, all these temperatures could be moitored accurately.
◆ Working room relative humidity can be set and controlled automatically. With ultrasonic wave humidifying system, the working room can obtain more stable and uniformhumidity distribution.
◆ Xenon lamp aging test chamber Can set spray way to sample(front spray orback spray),spray time and spray interval time.
Xenon lamp weathering test chamber Simple, easy touse
◆ Xenon lamp weathering test chamber Colorful touch screen and user-friendly operation interface allow operator to set the test parameters and monitor it easily.
◆ The test procedures can be programmed freely; and up to 16 predetermined procedures can be saved in one time. Every procedure includes up to 10 segments setting data.
◆ With USB interface, operator can export any test parameters with Excel format at anytime, convenient to check B-SUN’s running status at any time.
◆ Pure(deionized)water machine is optional.With high purity water, operator can get a more reliable testing result,Chamber has alarm function for monitoring water.
Xenon lamp weathering test chamber Safe and reliable
◆ Xenon lamp weathering test chamber Many alarm protections:Big irradiance difference, water conductivity is over limits, too high temperature of cooling water, too low flow rate of cooling water, over-temperature, heating problem. B-SUN will stop running automatically and show the alarm information in the operation window.
◆ Can select TCP/IP Ethernet interface, the user can tele-control the machine through TCP/IPinternet.
Convenient to help customers to slove all problems and do some necessary after service
Xenon lamp weathering test chamber MainTechnical Parameters
Ordering Information → | Xenon lamp weathering test chamber |
Technical Item ↓ | |
Xenon Lamp | 6.5 KW water cooling long arc xenon lamp |
Light Filter | Import originally from ATLAS, can simulate indoor or outdoor sunshine spectrum |
Exposure Area | 6,500 cm2 |
Wave Length of Xenon Spectrum | Can select 300-800nm(simulate sunshine,filtrate all wavelength under 300nm )or 280-800nm (Add UV wave,keep some short-wave of UV) |
Adjustable Irradiance | 0.3~1.5 W/ m2 (Single point of control: 340nm) |
0.5~2.7 W/ m2 (Single point of control: 420nm) | |
30 W/m2~150 W/ m2 (Full spectrum :from 300~400nm) | |
Lifetime of lamps | 2,000 hours |
Adjustable BPT | RT+20℃~110℃ |
Temperature Stability | ±1℃ |
Temperature Uniformity | ≤2℃ |
Temperature Declination | ≤±1℃ |
Adjustable Humidity | Light:10%-85% Dark:10%-95% |
Rotate speed of sample | 1~7 r/min(circle as lamp centre) |
Spray Function | Can set spray continuous time and spray period |
Water demands | High purity deionized water(Conductivity<2us/cm) |
Flow of Deionized Water | 0.2L/min |
Overall Size | 1,200*1,200*2,000mm(L*W*H) |
Weight | 850 KG |
Optional Pure Water Machine | Size:620*650*1600(L*W*H) |
Weight:120KG | |
Structure | |
Cabinet Material | Whole chamber is made up of good quality stainless steel (SUS304) |
Chamber Door | Simple door to left with filter window;silicon rubber seal the door edge |
Sample Crack | Stainless steel material, its position in the chamber can be adjusted(up, middle or down) , Sample crack rotate around the centre of lamp |
Controller | Siemens programmable controller. LCD touch-screen |
Way of adding humidity | Add humidity by ultrasonic humidifier |
Black panel thermometer | Heat insulate type black standard thermometer |
Cooling System | Cooled by compressor and forced-air blast system |
Security Protections And Error Protections | |
Xenon Lamp Protection | Protection to cooling water for xenon lamp shortage. |
Protection to big electric current to xenon lamp | |
Protection to big irradiance deviation for a long time | |
Water Shortage Protection | Water shortage, cooling water to lamp shortage, low flow rate of cooling water, water shortage when heating |
Power Source Protection | Over-power, over-electric current, shortage phase and wrong phase sequence |
Working Room Temperature Protect | Individual over-temperature protection of working room temperature. Over-temperature protection for BPT and BST |
Pure System Protect | Monitor the conductivity of pure water at real-time(Once the conductivity≥2us/cm, the machine will stop and alarm) |
Protection to Radiation | Xenon lamp will turn off automatically when opening the chamber door, in case xenon lamp radiate operator |
Installing Environment Requirement | |
Power Source | 380V土10% 3-phases 4 lines or 220V土10% 2-phase; |
50 or 60Hz;Max. electric current≥40A;Max. power is 8KW | |
Air Outlet | There should be air outlet in the installation place to connect vent pipe |
Standard Accessories | |
Xenon Lamp---1 pc (Can select Atlas or other Chinese brand) Sensor---2 pcs (OSRAN) | |
Xenon Lamp Filter---1 set (Can select Atlas or other Chinese brand) Simens Control System---1 set | |
Human-computre Interface---1 pc (Touch Screen) Specimen Holders---65 pcs | |
Black Panel Temperatrue Holders---2 pcs (include 2 PT 100) Irradiance Calibration Holder---1 pc | |
Optional Accessories | |
SM- 8171---Purity Water System(50L/min) SM- 8140---Radiometer(340nm); | |
SM- 8141---Radiometer(420nm); SM- 8142---Radiometer(300~400nm); |
※Please consult the sales for specific technical parameters, SANWOOD reserves the right of explanation.
