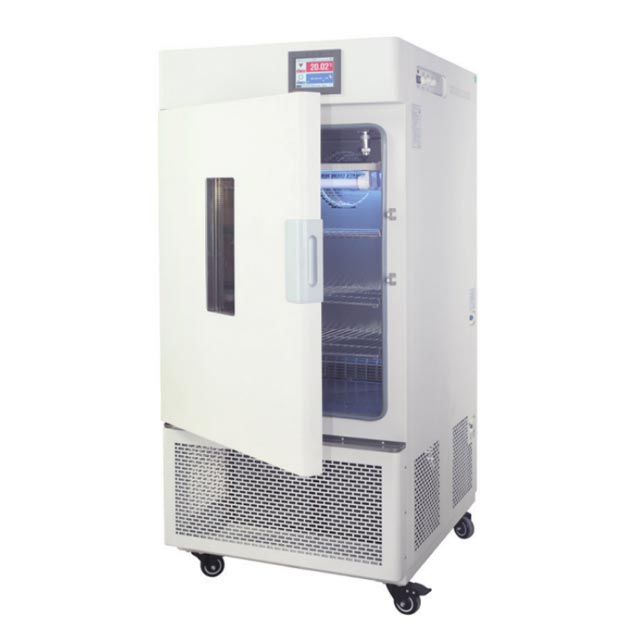

Comprehensive drug lighting stability test chamber(UV lamp supervise and control)

Share to:

We want to cooperate with with you .Sanwood Comprehensive drug lighting stability test chamber (UV lamp supervise and control),Comprehensive drug lighting stability test chamber,Drug lighting stability test chamber,Comprehensive drug lighting stability chamber,Drug lighting stability chamber
Create the best choice for testing the drugs in a stable temperature, humidity and lighting condition of long time operation. Convenient for the pharmaceutical enterprise to do research and development.

Quantity:
  • SM-LHH-150GSD-UV/SM-LHH-250GSD-UV/SM-LHH-500GSD-UV/SM-LHH-800GSD-UV/SM-LHH-1000GSD-UV/SM-LHH-150GP-UV
  • Sanwood
  • SM-LHH-150GSD-UV/SM-LHH-250GSD-UV/SM-LHH-500GSD-UV/SM-LHH-800GSD-UV/SM-LHH-1000GSD-UV/SM-LHH-150GP-UV

Product Description

Comprehensive drug lighting stability test chamber  (UV lamp supervise and control) Product features:

Lighting system of the comprehensive drug lighting stability test chamber

●Comprehensive drug lighting stability test chamber accord with the requirement of lighting stability and relevant international manufacturing standards. Supported by the 2015 Pharmacopoeia drug stability test guidelines. Simulate a stable temperature, humidity and lighting condition of long time operation in a scientific way.

Rack illumination system or outdoor illumination system for chosen. Visible modulator tube and UV lamp modulator tube included and independent controlled.


Comprehensive drug lighting stability test chamber  (UV lamp supervise and control) Loading bracket adjustable.

Irradiance supervise and control

Breakthrough the defect of irradiance can not be displayed and supervised, decrease the irradiance attenuation problem and error caused by the experiment. Provide the lighting sensor and UV lamp detector, convenient for the users to observe and calibrate.


Professional UV lamp modulator tube

Compare to the normal UV lamp modulator tube, our professional UV lamp have the features of high quality and even spectral powder distribution, avoid the affection caused by the aging problem.

●Apply the UV lamp holder which can run normally under the high wet condition.


Humanized design

Newly fluoride-free design, high efficiency, energy saving.

Micro-computer controller: accuracy control, special sterilization 304 stainless steel liner, semicircle design(Four corners), easy cleaning.

Special air circulatory system, ensure the temperature and humidity even inside.

●A φ25mm testing hole on the left side of the chamber


Continuous operation qualified

2 sets imported compressor automatically switch, prevent the long time running defect from happening.

Non-defrosting, continuous operation work normally.



Quality qualified

Imported temperature and humidity controller, compressor and circulating fan, make the continuous operation possible.


Imported humidity sensor

Apply the humidity sensor work under the high temperature.


◆Programmable touch screen controller(GSP series)

Large LCD touch screen, easy operation and programmed.

Language switch on the operation menu, data display.

100 programs, 999 circular steps. Timing setting from 1~5999 min.

●After data and experiment parameters input, password lock screen runs, security control.

P.I.D auto tuning function, amend the temperature and humidity change, accuracy control.

RS-232 or RS-485 communication screen; Input process on computer, supervise the experiment process.



◆Data record and error display

LCD screen will display the error information when the device breaking down.

Printer or RS485 port inside; Temperature recording(Optional choice).



◆Wireless alarm system(SMS alarm system)-optional

Message will be delivered to the users when error occurs at the first moment. Ensure the security.


◆Security function

Independent temperature warning system; sound-light alarm.

Too high/too low and over temperature also trigger the alarm.

Standard with door Lock system, prevent the UV hurting people when the chamber under running.

Password Lock Screen, security control.




※Provide 3Q verification and calibration services(Optional choice):

※Provide the IQ/OQ/PQ service to customers, meet the drug stability test chamber performance and requirement. Guarantee the highly accuracy of temperature and humidity data.(Optional)

※Provide the authority third party testing report in shanghai.(Optional choice)


Comprehensive drug lighting stability test chamber  (UV lamp supervise and control) Execution and satisfying criteria:

Supported by the 2015 Pharmacopoeia drug stability test guidelines and GB/T10586-2006 relevant terms.

●Speed up experiment: 40℃ ±2.0℃/75%RH±5%RH; or 30℃ ±1.0℃/60%RH±5%RH 180 days.

●Long-term experiment: 25℃ ±2.0℃/60%RH±5%RH,or 30℃±2.0℃/60%RH±5%RH 365 days

●Highlight illumination experiment: 4500±500LX 10 days

●Meeting the Q1B illumination requirement:  total illumination≥1.2×106LUX.hr;

Ultraviolet energy ≥200W.hr/m 2.

Illumination and Ultraviolet irradiation test can be done together.



Comprehensive drug lighting stability test chamber  (UV lamp supervise and control) Technical parameters:


ModelSM-LHH-150GSD-UVSM-LHH-250GSD-UVSM-LHH-500GSD-UVSM-LHH-800GSD-UVSM-LHH-1000GSD-UVSM-LHH-150GP-UV
SM-LHH-150GSP-UVSM-LHH-250GSP-UVSM-LHH-500GSP-UVSM-LHH-800GSP-UVSM-LHH-1000GSP-UVSM-LHH-250GP-UV




SM-LHH-1500GSP-UVSM-LHH-400GP-UV
Temperature control rangeWithout illumination: 0~65℃; with illumination: 10~50℃
Temperature fluctuation±0.5℃ /±2℃
Humidity control
range/Humidity deviation
35~95%RH/±3%RHNone
Illumination intensityCool white fluorescent 0-6000Lux adjustable/±500Lux, UV light   intensity adjustable
Ultraviolet spectral range320~400nm
conform to test standardICH Q1B command, Cool white fluorescent≥1.2×106Lux.hr; ultraviolet fluorescence≥200 w.hr/m2
IlluminantCool white fluorescent(conform to ISO 10977); UVA ultraviolet fluorescence
Standard light sourceCool white light(D65, 6500k)/ UV wavelength coverage:320-400nm
Refrigerating system2 sets imported compressor automatically switch
ControllerGSD series: programmable LCD controller; GSP series: programmable touch screen controller

Programmabe

 LCD controller

Power supplyAC220V 50HZAC380V 50HZAC220V 50HZ
Volume150L250L500L800L1000L/1500L150L/250L/400L







Liner dimension550×405×670600×500×830670×725×1020800×590×16501050×590×1650550×405×670
 (W×D×H mm)





1550×590×1650600×500×830






700×550×1140
Outside dimension690×805×1530740×890×1680850×1100×19301360×890×20001610×890×2000690×805×1530
 (W×D×H mm)





2110×890×2000740×890×1680






950×850×1850
Light wayIllumination on top/ Illumination on doorIllumination on top

Illumination on door

/ Illumination on top

Embedded printerstandard configuration
Security systemOver temperature protection, water shortage protection, wire alarm   system
Remarks1.High accuracy digital recorder
2.Manual stepless adjusted, standard with illumination detector and UV detector, UV illumination on top
3.Multi-layer illuminator




Optional accessories(when picking this option, delivery need to be added 7 days)

  1. Paperless recorder(universal type)

  2. SDR100 imported paperless recorder

  3. Wire alarm system

  4. SMS alarm system
