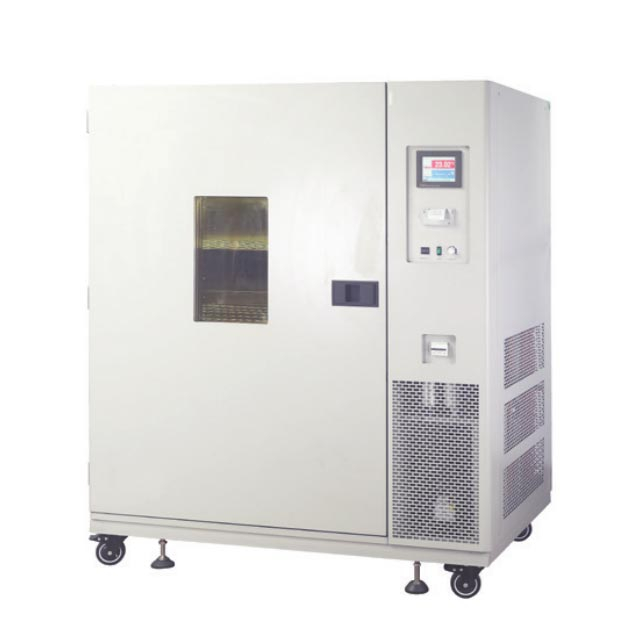

Large Comprehensive Drug Stability Test Chamber

Share to:

Sanwood , a 23 years of professional Large Comprehensive Drug Stability Test Chamber,Comprehensive Drug Stability Test Chamber, Drug Stability Test Chamber,Large Drug Stability Test Chamber,Drug Stability Chamber manufacturers
Create the best choice for testing the drugs in a stable temperature, humidity and lighting condition of long time operation. Convenient for the pharmaceutical enterprise to do research and development.

Quantity:
  • SM-LHH-500SD/SM-LHH-500SDP/SM-LHH-800SD/SM-LHH-800SDP/SM-LHH-1000SD/SM-LHH-1000SDP/SM-LHH-1500SD/SM-LHH-1500SDP
  • Sanwood
  • SM-LHH-500SD/SM-LHH-500SDP/SM-LHH-800SD/SM-LHH-800SDP/SM-LHH-1000SD/SM-LHH-1000SDP/SM-LHH-1500SD/SM-LHH-1500SDP

Product Description


Large Comprehensive Drug Stability Test Chamber Product features:

● Newly fluoride-free design, high efficiency, energy saving.

● Special sterilization stainless steel liner, semicircle design(Four corners), easy cleaning.

● Micro-computer controller, data digital display.(For SD/GSD model)

● LCD touch screen controller, operation condition display(For SD/GSD model)

● Continuous operation: 2 sets imported compressor switch automatically.

● Non-defrosting, continuous operation work normally.

● Imported humidity sensor.

● GSD/GSP series have illumination adjustment function.


Programmable touch screen controller

Security function:

● The warm-up system automatically stop when the door open.

● Automatic control of circulating fan speed, avoiding the volatilization of samples effectively.

● Password Lock Screen, security control.

● Independent temperature warning system; sound-light alarm.

● Temperature deviation alarm, over temperature/ water shortage protection.

● Wire alarm system; (For SD/GSD model)


Provide 3Q verification and calibration services(Optional choice):



Large Comprehensive Drug Stability Test Chamber Technical parameters:


ModelSM-LHH-500SDSM-LHH-800SDSM-LHH-1000SDSM-LHH-1500SD
SM-LHH-500SDPSM-LHH-800SDPSM-LHH-1000SDPSM-LHH-1500SDP
Temperature control range0~65℃
Temperature fluctuation±0.5℃/±2℃
Humidity control range/35~95%RH/±3%RH
Humidity deviation
IlluminationNone
Refrigerating system2 sets imported compressor automatically switch
ControllerSD series: Domestic programmable touch screen controller
SDP series: Imported programmable touch screen controller
SensorTemperature: PT100; Humidity: Capacitive sensor
Operation ambient temperatureRT+5~30℃
Power supplyAC220V 50HZAC380V 50HZ
Input power3750W7150W7150W10600W
Volume500L800L1000L1500L
Liner dimension670×725×1020800×590×16501050×590×1650 1550×590×1650
(W×D×H mm)
Outside dimension850×1100×19301360×890×20001610×890×20002110×890×2000
(W×D×H mm)
Loading   Bracket(Standard)4 pcs
Security systemOver temperature protection, water shortage protection, wire alarm   system
Remarks1.SD、SDP、GSD、GSP series, embedded printer;
2.High accuracy digital recorder.
3.Comprehensive drug stability test chamber standard with illumination   detector.
4.GSD/GSP series can be installed 2 to 3 layer illumination device.



Large Comprehensive Drug Stability Test Chamber


ModelSM-LHH-500GSDSM-LHH-800GSDSM-LHH-1000GSD
SM-LHH-500GSPSM-LHH-800GSPSM-LHH-1000GSP
SM-LHH-1500GSP
Temperature    control rangeWithout illumination: 0~65℃;
With illumination: 10~50℃
Temperature fluctuation±0.5℃/±2℃
Humidity control range/Humidity deviation35~95%RH/±3%RH
Illumination0-6000LX adjustable≤±500LX
Refrigerating system2 sets imported compressor automatically switch
ControllerGSD series: Domestic programmable touch screen controller
GSP series: Imported programmable touch screen controller
SensorTemperature: PT100; Humidity: Capacitive sensor
Operation ambient temperatureRT+5~30℃
Power supplyAC220V 50HZAC380V 50HZ



Controller3910W7350W7350W/10800W
Sensor500L800L1000L/1500L
Operation ambient temperature 670×725×1020 800×590×16501050×590×1650
1550×590×1650
Power supply850×1100×1930 1360×890×20001610×890×2000

2110×890×2000
Loading   Bracket(Standard)4 pcs
Security deviceOver temperature protection, water shortage protection,
wire alarm system
Remarks1.SD、SDP、GSD、GSP series,embedded printer;
2.High accuracy digital recorder.
3.Comprehensive drug stability test chamber standard with illumination detector.
4.GSD/GSP series can be installed 2 to 3 layer illumination device.
