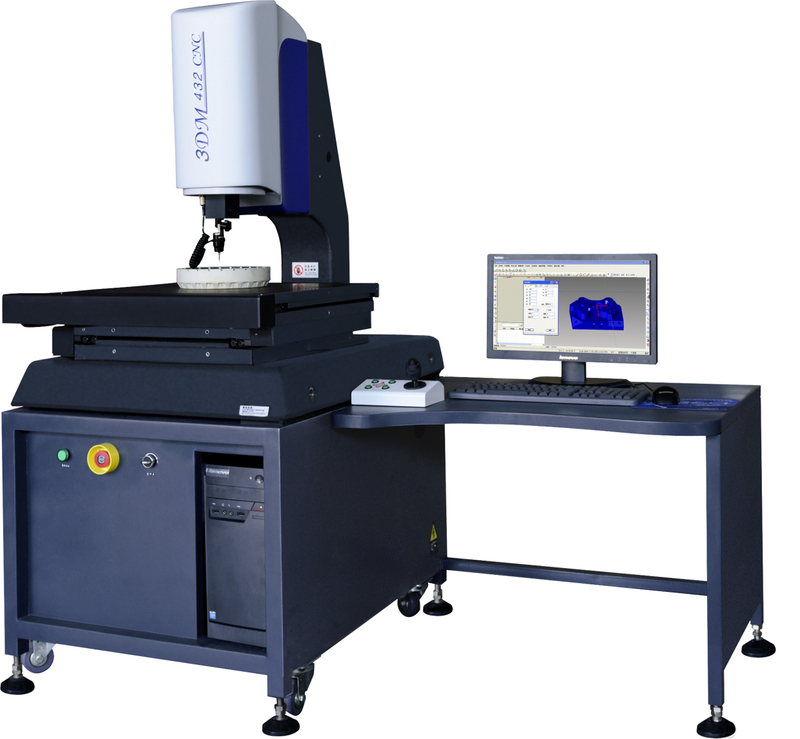

three-coordinates measuring machine


Share to:
sharethis sharing button
Mainly used for the measurement of geometric size, type and position tolerances of size measurement, curve, profile measurement, engineering design, development, two-dimensional, ratio measurement; through the probe contact with professional measurement software, the measurement results of digital data; such as blind, sink hole, angle, height, slope, aspect, step that point, line, circle, arc, and so on; to achieve the effect of precision measurement. The level of accuracy at the UM level.

Product Description

Basic function:

1.AC-OPTIC has three coordinate measuring functions, flexibly control the contact type probe point, line, circle, ellipse, planar, cylindrical, conical, spherical, square groove, circular groove, ring, curve, surface and other evaluation of three-dimensional geometry measurement and related tolerances.

2, it can automatically program measurement and improve work efficiency

3. Save print measurement result and measurement report. Format of measurement report output, Word, Excel, TX and so on

4, Window operating system, Chinese, English and German conversion

Technical parameters

1.Measuring range X×Y×Z:  400mm×300mm×200mm

2.Space dimension1420㎜×790㎜×1680

3. Maximum load50kg

4. GratingImported British RENISHAW 0.0005MM

5. Machine weight300kg

6.Indicating error: (4.0L/200mm

7.Motor:  Servo motor

8. Main machine:

The whole machine adopts 00 stage marble, super pedestal and column structure to ensure the stability of the machine. 00 stage marble cross table

The three axis guide rail adopts high precision V and Taiwan HIWIN rail, and the material is the same as that of the machine body. Therefore, it has good temperature stability, anti actual effect, good deformation ability, good steel property and minimum dynamic geometric error

The three shafts are all made of high precision screw gearing, which greatly improves the stability of the three shafts

9. Control system:  Germany MORA designed special coordinate measuring machine ACC CNC closed loop control system;

10. Probe systemBritish RENISHAW MCP  Kit1 Manual rotation probe measuring system

11. Counting system

Grating: resolution 0.5 um

Computer: dual core 2.5/ memory 2G/ hard disk 500G/19 LCD color display;

11.Work environmentTemperature20+2℃, humidity40%-70%

12.Maximum load of table:  50Kg

13.Power supply220V+10%,   50HZ-60HZ
