vacuum drying oven-Microcomputer control(with time setting)

loading

Share to:
sharethis sharing button
With the over ten years experiences and follow the world’s environmental protection trend, our new generation vacuum oven create a different Heat conduction method successfully; Providing the high quality and satisfactory products with humanized design to the global clients.
Availability:
Quantity:
  • SM-DZF-6930/SM-DZF-6500/SM-DZF-6210/SM-DZF-6216A/SM-DZF-6090/SM-DZF-6094A

  • Sanwood

Product Description


Product features:

● Rectangle vacuum liner, maximum the volume and make full use of the space.

 Double tempered bulletproof glass door, can observe the samples inside clearly;

● Loose and tight, the silicon rubber sealing strip can be adjusted and ensure high vacuum inside.

● Stainless steel sheets, easy cleaning, long life service.

● Storage, warm-up, experience and drying under the condition with inactive gas inside or non-oxygen, will not be oxidized.


 Rack directly warm-up and control:

● Independent temperature sensor under each rack, accuracy response to the samples and independent data display and control; Saving 50% warm-up and operation time.


Technical parameters:

ModelSM-DZF-6930SM-DZF-6500SM-DZF-6210SM-DZF-6090
SM-DZF-6216ASM-DZF-6094A
Power supplyAC380V 50HZAC380V 50HZAC220V 50HZ
Input power5800W3800W2100W1350W

Temperature

control range

RT+10~200℃

Temperature

 fluctuation

0.1℃ /±1℃
Vacuum degree133Pa
Vacuum gaugeImported vacuum gauge

Operating ambient

temperature


5~40℃

Liner dimension750×1160×1050         630×810×845560×600×640450×450×450
(W×D×H mm)
Outside dimension1400×1395×20101000×1040×1855720×820×1750610×590×1350
(W×D×H mm)
Rack4 PCS4 PCS3 PCS2 PCS

(independent

temperature control)

(independent
temperature
control)
(independent
temperature
control)/6 PCS
(independent
temperature
control)/4 PCS
Oven material304 stainless steel(1Cr~18Ni9Ti)


Under the idle condition ,Performance Parameters tested like this:

Environment temperature is 20, environment humidity is 50% RH.


Optional accessories(when picking this option, delivery need to be added 7 days)

  1. Intelligent programmable LCD temperature controller;

  2. Inactive gas inlet valve;

  3. Liquid filters(Price depends on model);

  4. Drying cans;

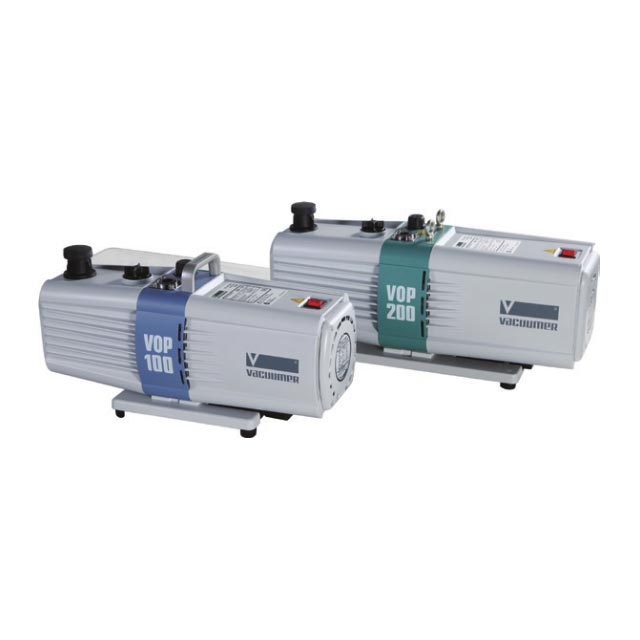

  5. Imported vacuum pump VOP-100/200;

  6. Air exhausted greasy dirt filter (Replaced once half a year);

  7. Domestic vacuum pump 2XZ-2;

  8. Domestic vacuum pump 2XZ-4.

Vacuum pump: stable performance, noiseless, less exhaust gas, long service life, easy maintenance. Prevent the pollution occur and keep the users safety.


Remarks:

1. Standard with vacuum pump and drying cans;

2. The temperature range can be extended to RT+10250 or RT+10100 as per the users requirement, delivery is 15 days;

Price will be charged 15% more.

3. Delivery for the model DZF-6500 is 25 days when picking order;

Delivery for the model DZF-6930 is 30 days when picking order.

4. Only rack warm-up ways can be applied to the 300 vacuum oven if custom, and the delivery will be 20 days + 20% charges.
