IEC68-2-30 Alternating Humidity and Heat Test: Sanwood Technology Walk-in Environmental Test Chamber

Views: 6     Author: Sanwood Technology     Publish Time: 2025-07-25      Origin: Sanwood Technology

In order to ensure the stability of product performance in high temperature and high humidity and other harsh environments, Sanwood Technology has introduced a Walk-in Environmental Test Chamber that strictly follows the IEC68-2-30 Test Db (Alternating Humidity and Heat Test Methods) standard to provide companies in the fields of industrial manufacturing, electrical and electronic appliances, automotive parts and components, aerospace and other fields with accurate and efficient testing solutions to help improve product quality.


Standard interpretation

IEC68-2-30 is an environmental test standard formulated by the International Electrotechnical Commission (IEC), in which Test Db (alternating humidity and heat test) is mainly used to assess the ability of products to withstand temperature cycling and high humidity environments. The test by simulating high temperature and high humidity → low temperature and high humidity → return to normal cyclic changes in product quality, performance of each temperature, humidity section of the endurance test, such as: insulation of electronic components, corrosion of metal materials, product sealing and structural stability.

The test is widely used in electronic equipment, automotive parts, military products, photovoltaic components and other industries, to ensure the long-term reliability of products in the tropics, coastal and other high humidity environment.

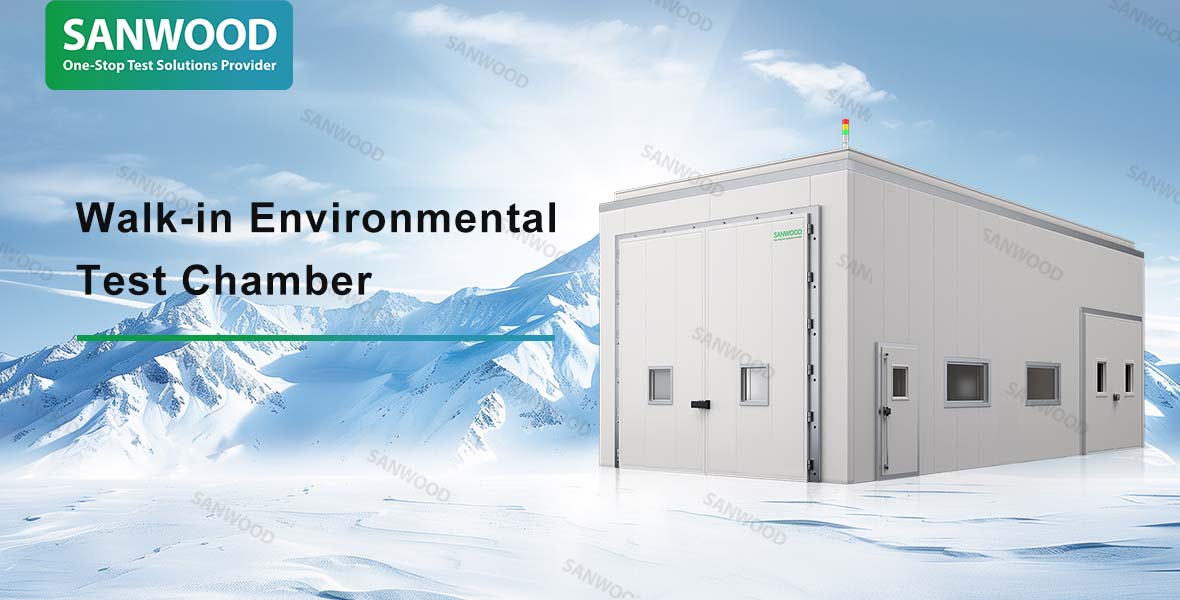

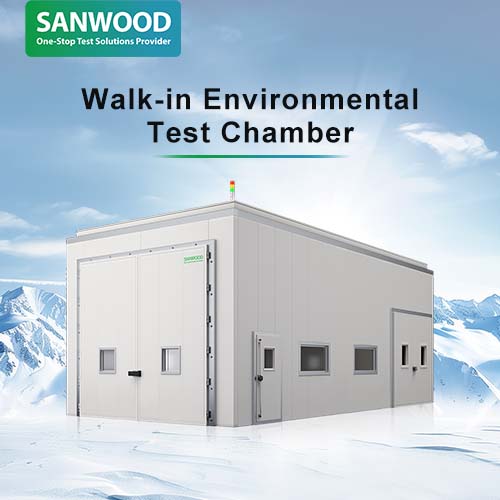

IEC68-2-30 Alternating Humidity and Heat Test Sanwood Technology Walk-in Environmental Test Chamber


Technical parameters of the equipment

Temperature range: -70℃~+150℃ (continuously adjustable)

Humidity range: 20%RH~98%RH

Temperature fluctuation: ≤±0.5℃ (no-load)

Temperature uniformity: ≤1.5℃ (0℃~+85℃) (no-load, constant state time)

                                        ≤2.0℃ (-70℃~0℃, +85℃~+150℃) (no-load, constant state time)

Temperature deviation: ≤ ± 1.5 ℃ (0 ℃ ~ +85 ℃) (no load, constant state)

                                      ≤ ± 2.0 ℃ (-70 ℃ ~ 0 ℃, +85 ℃ ~ +150 ℃) (no load, constant state)

Heating rate: -65 ℃ ~ +85 ℃, the whole average of ≥ 3 ℃ / min (no load)

Cooling rate: +85 ℃ ~ -65 ℃, the whole average of ≥ 1 ℃ / min (no load)


Equipment features

Sanwood's Walk-in Environmental Test Chamber is designed for large-volume samples, batch products of the hot and humid test needs, with the following core advantages:

The operator can enter the laboratory to operate the experimental products.

The box door has a safety protection device inside, the door lock adopts both inside and outside can open the safety door lock, personnel can be opened from the inside, the way personnel are locked.

Imported high-precision temperature and humidity sensors to ensure the accuracy of the test data, in strict accordance with the IEC68-2-30 standard.

Large volume walk-in design, suitable for large equipment, vehicle components, multiple batches of products tested at the same time.


Sanwood's Walk-in Environmental Test Chamber not only complies with IEC68-2-30 standard, but also meets GB/T2423.3, MIL-STD-810D and other domestic and international test specifications, which helps enterprises to enhance the competitiveness of their products. In addition to the Walk-in Environmental Test Chamber, we have also developed to meet the standards of Temperature Humidity Test Chamber, AGREE Test Chamber, High and Low Temperature Test Chamber and other equipment. And support customization service.

For more professional testing solutions, please contact Sanwood Technology, we will customize professional services for you.
